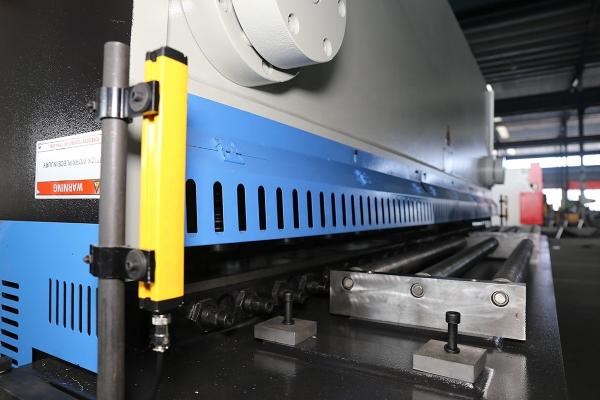

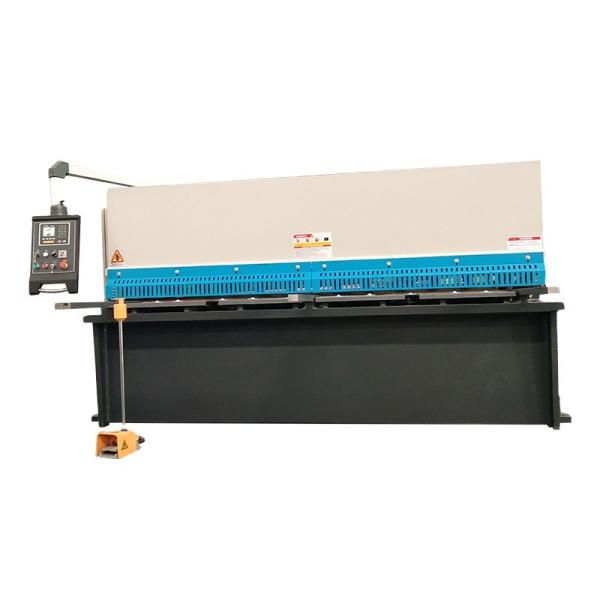

6mm Hydraulic Guillotine Shear / Metal Plate Cutting Machine 3 meters long

1. The entire machine frame is processed by Germany SHW pentahedron processing center at one time.

2. Adopts Delem DAC360 CNC system:
● precisely control backgauge
● precisely control shearing stroke
● precisely control shearing angle
● precisely control blades clearance
● precisely control number of jobs.

3. Adopts Germany BOSCH integrated hydraulic system:
● to simplify the pipeline
● to avoid oil leakage
● to improve the working stability
● to beautify the machine appearance

4. The shearing angle can be easily adjusted through programming to avoid the deformation of the workpiece caused by cutting.
5. The upper beam stroke length can be automatically adjusted to realize the fast and precise cutting of short and small workpiece in order to improve working efficiency.
6. The CNC system will automatically adjust the blades gap according to the different sheet thickness and material to improve cutting quality.

7. Four-side shearing blade is adopted to improve the service life of blade which is much better than that of swing shear.
8. New design of backgauge,stable structure,improve Wear resistance, the crashworthiness a lot
DELEM DAC360 CNC System
1.used for the auto control of shearing machine with full-functional front-feeding or backgauge
2.adopts high definition LCD display, menu type programming;
3.shearing angle, blade gap, shearing stroke auto calculation and control;
4.modular construction, flexible definition or extend X1-X2 synchronized feeding control and auxiliary Z axis control;
5.adopts absolute position and relative position programming;
6.auto search of reference point, and the memory off-position can be set;
7.unique hand wheel design to make machine adjustment conveniently;
8.RS232 serial interface;
9.output of multi user-defined auxiliary signals;
10.self diagnosis program;
11.internal storage of 100 program line;
12. 4.7 inch high definition LCD;
13.function of program counting;
14.size unit selection between metric system and English system.
