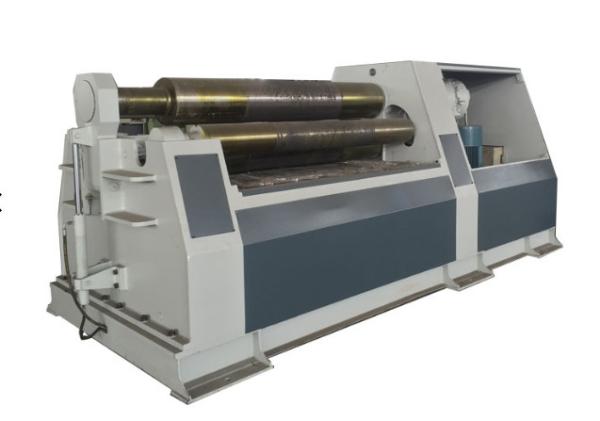

W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum
Specifications
Brand Name :
YUAN
Model Number :
W12-8x2000
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
12000-69000USD
Payment Terms :
L/C, T/T
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Thickness :
8 mm
Width :
2000 mm
Pre-bending :
6.5 mm
Top roller :
210 mm
Description

W12 8mm 2000mm DA VI metal aluminum steel iron sheet cold rolling pipe machine

The top roller is driven by hydraulic motor. Through the friction between the metal plate and the top roller to drive the bottom roller and side rollers rotate. And supply the torque for bending plate. The bottom roller,side roller and drop end are all driven by hydraulic oil tank.

The bottom roller move up and down, the side roller move along with an arc. The bottom roller rising to clamp the plate and the side roller title up to pre-bend the end of the plate.

W12 Iron Sheet Cold Rolling Machine 8mm 2000mm CNC DA VI Metal Aluminum 1.CNC control,digital readout for position of each rollers. High accuracy and precision circle
2.Full hydraulic drive,high efficiency and energy saving,the drive power is equivalent to the traditional 60%
3.Once forming,the productivity is higher 50%-80% than three roller bending machine
4.The min. bending diameter of the cylinder can get to 1.1 times the diameter of the top roller,the surplus flat edge smaller than any type of other plate rolling machine

Features:

4 roll plate roller CNC control, digital readout for position of each rollers. High accuracy and precision circle
The min. bending diameter of the cylinder can get to 1.1times the diameter of the top roller, the surplus flat edge smaller than
any types of rolling machine in metal
left and right support in rolling metal machine
aluminium cold rolling machine Upper support
Roller /rolling machine iron can make polishing roller
Coiling device mini rolling machine can do cone shape
Siemens motor in zinc rolling machine
CNC controller

Parameters:

W12 Model
Max. thickness(mm)
Pre-bending thickness(mm)
Max. length(mm)
Top roller diameter(mm)
Bottom roller diameter(mm)
Side roller diameter(mm)
4x2000
4
3.5
2000
160
140
120
8x2000
8
6.5
2000
210
190
170
12x2000
12
10
2000
270
250
210
16x2000
16
13
2000
300
270
220
25x2000
25
20
2000
360
330
250
40x2000
40
32
2000
460
420
360
6x2500
6
5
2500
210
190
170
12x2500
12
10
2500
300
270
220
16x2500
16
13
2500
330
300
240
25x2500
25
20
2500
390
360
300
30x2500
30
25
2500
460
420
360
40x2500
40
32
2500
510
460
390
6x3000
6
5
3000
230
210
190
10x3000
10
8
3000
300
270
220
12x3000
12
10
3000
330
300
240
16x3000
16
13
3000
360
330
250
25x3000
25
20
3000
430
390
330
30x3000
30
25
3000
460
420
360
40x3000
40
32
3000
550
510
420
