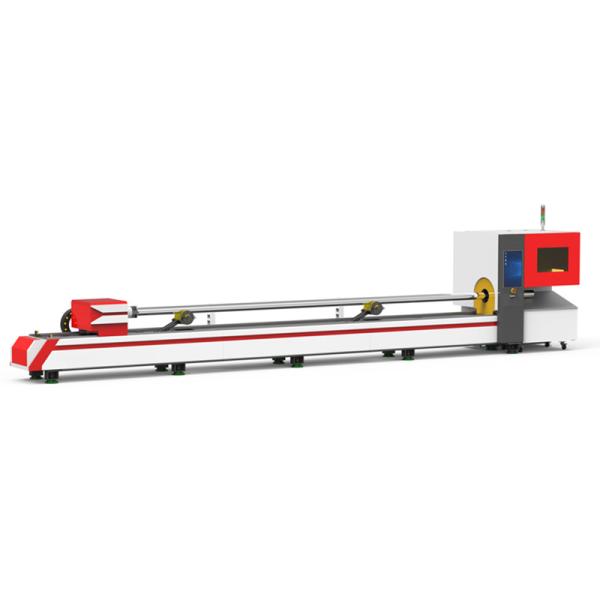

Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube
Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube
Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube
Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube
Specifications
Brand Name :
YUAN
Model Number :
2200x6000 mm
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
40000-80000USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Application :
laser cutting pipe
Cutting Area :
20-200 mm
Applicable Material :
Metal, stainless steel
Guiderail Brand :
HINWIN
Servo Motor Brand :
YASKAWA or Shimpo Servo Motors
Applicable Industries :
Hotels, Garment Shops, Building Material Shops
Description

1000w 1kw cnc metal laser cutter fiber laser cutting machine for pipe tube steel carbon sheet

professional pipe fiber cutting machine. It can process all kinds of round,square, rectangule, oval tube and horn-type pipe with max.

Running speed is 140m/min, working idle speed is 170r/min, high efficient and time saving.

Parameters:

Model.No
YJ-6T
YJ-9T
Working Area
6000mm
9000mm
Laser output power
1000W/1500W/2000W/3000W/4000W
Effective Pipe Cutting Diameter
20-350mm
Effective Square Tube Cutting Diameter
20*20-240*240mm
Rectangular tube Edge Length
20-170mm
Rectangular tube Outer Circle Diameter
≤230mm
Effectove Pipe Cutting Length
6m/9m
X/Y-axis positioning accuracy
0.05mm
X/Y/-axis repositioning accuracy
0.03mm
Snail roller
Servo snail idler

Configuration:

Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube

Raytools Laser Head

We can provide all high quality laser heads on the market. It's been tested by us for a long time. Fuji/Yaskawa all of our long-term partners.

Max Laser Source

Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.

Servo Motor

By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.
Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube

Cypcut Control System

can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.

Fuji Servo Driver

Japan Fuji dual servo drive system guarantees the working stability and accuracy. It ensures the accuracy of the machine working for a long time

S&A Water Chiller

With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.
Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube Auto Lubrication 1kw Cnc Metal Laser Cutter Cypcut Control For Pipe Tube

Taiwan YYC Gear

High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.

Auto Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

Taiwan HIWIN Guide

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
