Specifications
Brand Name :
YUAN
Model Number :
YJ-2D-410
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
9000-15000 USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 SETS
Delivery Time :
25 days
Packaging Details :
wooden box
Machine Type :
WIRE FORMING MACHINE
Raw Material :
kinds of metal wire
Extra Services :
Cut To Length
Material / Metal Processed :
Material / Metal Processed
Product name :
2d cnc wire forming machine
Material thickness :
4-10mm carbon steel wire mainly
Description

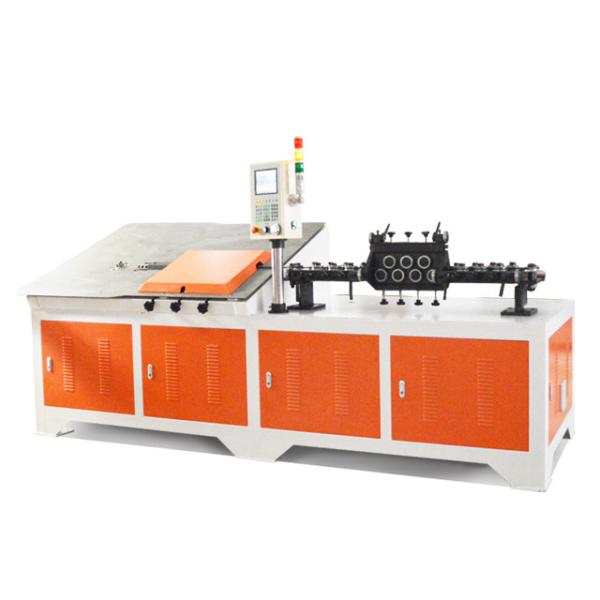

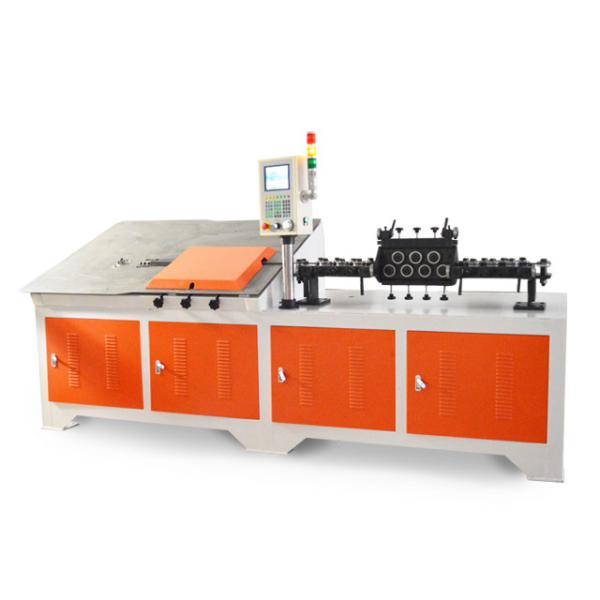

Factory production High speed automatic 2d cnc wire forming machine,5-8mm inox wire bending machine

2d cnc wire forming machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.

Advantages & Feature:

3 -4 groups feeding roller and straightening rollers, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable

it also can be with air cylinder for pressing the wire

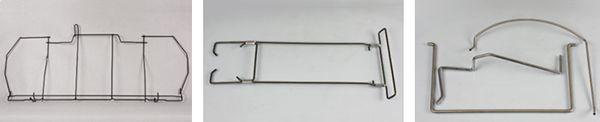

2d cnc wire forming machine Application field :

1) Auto Industry area
2) Chair industry

3) Display table and cargo shelf
4) Furniture and Kitchen

5) Hardware industry
6) Mattress, Sofa spring area
7) Architecture area
8) Hardware Artcraft

2d cnc wire forming machine basic parameters:

Model YJ-2D-410
Axis 3
Wire diameter 4-10mm
wire-feeding wheel 3
applicable wire

Round wire, square wire and so on

(any material)
Copy 10000 datas,300 acts as a group
Feeding speed max. 100(m/min)
Wire-feeding axis servo motor 4.5(kw)
Cutting axis servo motor 2.3kw

Angle-bending axis servo motor

 3.8kw
Process liftable in-out die, two-way bending
Feeding accuracy ±0.1mm
Max. Bending speed 800rpm/ min,angle±180º
Production capacity 10-30 pieces/min depends on difficulty
Operation system

32 beta in Chinese and English

(upload and download)
voltage 380V50HZ/60HZ3 Phases or customized
weight 1800kg
dimension 3300×120500×1500mm

Professional Supply Automatic 2d Wire Forming Machine /CNC Metal Wire Bending MachineProfessional Supply Automatic 2d Wire Forming Machine /CNC Metal Wire Bending MachineProfessional Supply Automatic 2d Wire Forming Machine /CNC Metal Wire Bending MachineProfessional Supply Automatic 2d Wire Forming Machine /CNC Metal Wire Bending Machine
