CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale
Specifications
Brand Name :
YUAN
Model Number :
89CNC
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
5000-7000USD
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Material / Metal Processed :
ALLOY, Brass / Copper, Carbon steel, Stainless Steel
Bending Radius (mm): :
25 - 350 mm
Max. Bending Angle (Deg): :
190
Automation :
Automatic
Extra Services :
End Forming
Applicable Industries :
Hotels, Garment Shops, Building Material Shops
Description

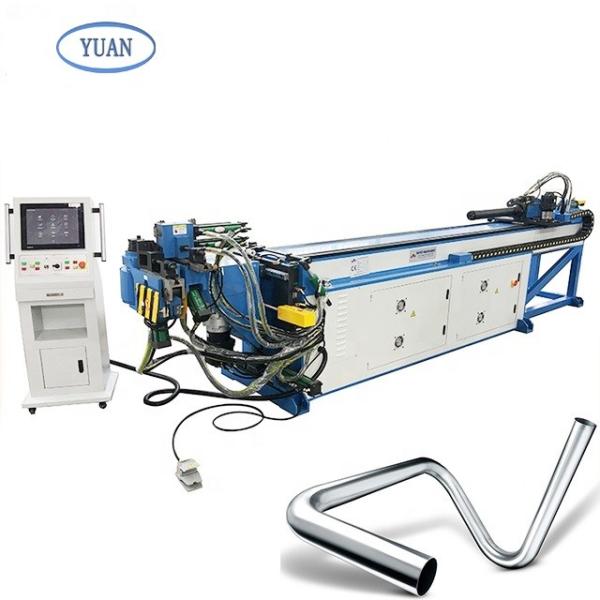

CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale

Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (B) & Rotation (C) in a complete automatic cycle.

Ranging from 10mm up to 220mm OD these machines are suited for use in a wide range of pipe manufacturing sectors and industries. Available in different versions, there's all three axis are automatic in a single stack machine.There’s also the option to add push bending function, left and right bending function, more stacks,and so on.
The series comes equipped with easy-to-operate touchscreen controls, or with the latest user-friendly 3D bending software. This stores tooling configuration, allows spring-back compensation, and boasts anti-collision technology, amongst other features.
CNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for saleCNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for saleCNC Mandrel bender Hydraulic ss Metal Steel exhaust tube pipe bending machine for sale

Feature

* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.

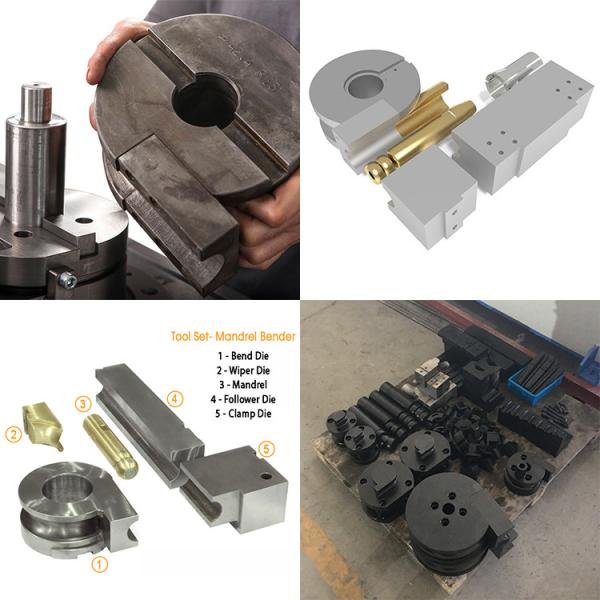

* Fully hydraulic clamping on clamp die and pressure die.
* Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
* Feeding (B-Axis): Controlled by Servomotor.
* Rotating (C-Axis): Controlled by Servomotor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system ensures the equipment long-time work stably under the high temperature.
* CE&ISO 9001:2000.

Options

*IPC Controlling

* Double/Triple/Quadruple Stack (Different Radius on one pipe bending)
* Pipe Push Bending Function(Big Radius)
* Extra Mandrel Length
* Left&Right Head Bending

Parameters:

Model
38CNC-2A-1S
50CNC-2A-1S
63CNC-2A-1S
76CNC-2A-1S
Max Capacity
￠38.1 (1.5”)×2mm
￠50.8 (2”)×2mm
￠63.5 (2.5”)×4mm
￠76.2 (3”)×5mm
Bending Degree
0-190°
0-190°
0-190°
0-190°
Bending Radius
10-200mm (for machine)
15-250mm (for machine)
20-300mm (for machine)
25-350mm (for machine)
Min Bending Radius
R≥1.5D (for pipe)
R≥1.5D (for pipe)
R≥1.5D (for pipe)
R≥1.5D (for pipe)
Mandrel Length
2300mm (can be customized)
2500mm(can be customized)
3000mm(can be customized)
3200mm(can be customized)
Max Bending Speed
90°/s
65°/s
60°/s
45°/s
Bending Accuracy
±0.1°
±0.1°
±0.1°
±0.1°
Motor Power
4 Kw
5.5 Kw
7.5 Kw
7.5 Kw
Model
89CNC-2A-1S
114CNC-2A-1S
129CNC-2A-1S
168CNC-2A-1S
Max Capcity
￠89 (3.5”)×8mm
￠114 (4.5”)×8mm
￠129(5”)×12mm
￠168(6.5”)×16mm
Bending Degree
0-190°
0-190°
0-190°
0-190°
Bending Radius
30-450mm (for machine)
40-550mm (for machine)
50-650mm (for machine)
60-850mm (for machine)
Mini Bending Radius
R≥1.5D (for pipe)
R≥1.5D (for pipe)
R≥1.5D (for pipe)
R≥1.5D (for pipe)
Mandrel Length
3800mm(can be customized)
4500mm(can be customized)
4600mm(can be customized)
6500mm(can be customized)
Max Bending Speed
40°/s
25°/s
20°/s
10°/s
Bending Accuracy
±0.1°
±0.1°
±0.1°
±0.1°
Motor Power
11 Kw
15 Kw
18.5 Kw
22 Kw
