Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers
Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers
Specifications
Brand Name :
Lidexin
Model Number :
LDX-028A
Certification :
CU,ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 unit
Price :
Western Union
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs/mon
Delivery Time :
10-15 work days
Packaging Details :
Outer diameter dimensions: 1.75*1.4*2.0mm
Radial angle :
3°-15°
Coolant pump flux :
501/min
Grinding wheel dimensions :
80*125*32mm
Description

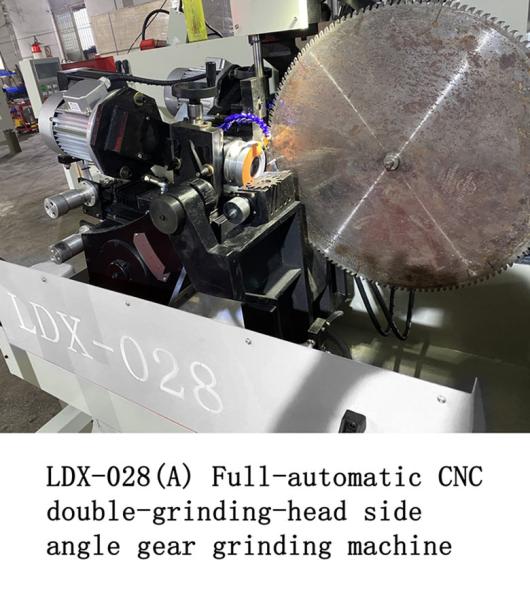

LDX-028A Full CNC servo TCT saw blade double grinding head side grinding machine manufacturers

How to choose the gear of the saw blade grinding machine:

1,Generally, for the gear with large modulus and large tooth width, the grinding wheel with coarser grain size should be selected, the linear speed, stroke speed and grinding amount of the grinding wheel should be small, the number of strokes should be less, and the grinding wheel should be trimmed more times

2,And increase the coolant flow rate to avoid grinding cracks; The first few laps must pay attention to observe the current change.

3,When installing the grinding wheel, it is necessary to confirm that it can be installed without difficulty by hand, and pay attention to the gap between the aperture of the grinding wheel and the clamping cover of the grinding wheel, otherwise the centrifugal force of the grinding wheel will be generated, resulting in eccentricity.

Technical parameters:
Saw web machining diameter range:￠100-￠800mm
Saw web bore diameter: 12-220mm
Thickness of saw web (steel plate):1-7mm
Tooth pitch: 5-80mm
Front inclination angle, inclination angle: 5°-15°
Radial angle: 3°-15°
Operating speed: 18 teeth/min
Feeding stroke: 1-28mm (stepless variable speed)
Grinding wheel dimensions: 80*100*32mm
Grinding speed: 26m/s
Coolant pump flux: 501/min
Coolant cylinder volume: 90L
Total power: 4.3KW
Voltage: Three-phase 380v
Weight: 1,100KG
Outer diameter dimensions: 1.75*1.4*2.0mm
Technical characteristics:
An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.

Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers

Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers

Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers

Full CNC Servo TCT Saw Blade Double Grinding Head Side Grinding Machine Manufacturers
