separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)
Specifications
Place of Origin :
China mainland
Brand Name :
cnc-machiningcam
Certification :
CE ,FDA
Model Number :
ZK-6060(600*600*250mm)
Control system :
Mach3 (Options: PCI Nc-studio,DSP offline)
MOQ :
1 set
Price :
1850$-2850$
Packaging Details :
Strong spywood package
Delivery Time :
3-7 working days after get your desposit
Payment Terms :
T/T ,ESCROW,WESTERN-UNION
Supply Ability :
420sets/month
Description

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

Machine’s feature of separate cnc router machine for wood/metal/stone cutting and engraving:

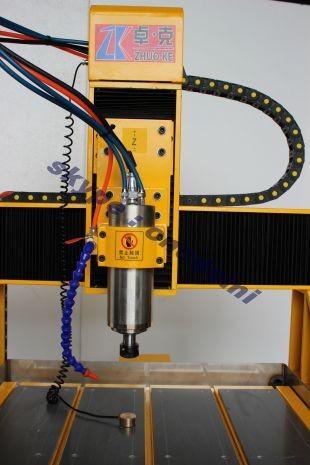

1.2.2kw mould water cooling spindle, can realize only diameter 1mm engraving line,

on the hardness materials.

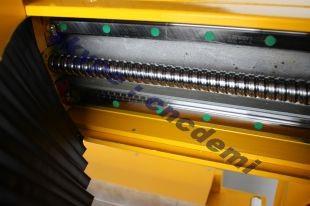

2. Z axies Tainwan TBI ball screw. feeding height is :250mm

3.Leadshine servo motor and driver best price and performance.

4.Auto tool calibration help you to set the tools, not break the tool nose, ensure the accurate.

5.Stainless steel water tank ,when processing the metal materials ,cooling the materials and the cutters,

prolong the use life.

6.Mach3 control system,support windowXP/7,suitable for desktop computer ,good perfromance.

7.Ergency stop button, ensuring the operation safe.

8. Taiwan PMI squire guide rail,ensure the higher quility and precise.

Machine’s application of separate cnc router machine for wood/metal/stone cutting and engraving: :

1.Metal, copper,iron, aluminium, steel, stainless stee...2D/3Dengraving, thin metal cutting.

2.Also can for the wood engraving&cutting, stone engraving, PVC, MDF, acrylic, organic glass, glass....

Parameter of separate cnc router machine for wood/metal/stone cutting and engraving::

Certificate

CE

Effective working area

600(X)mm*600(Y)mm*250(Z)mm

Moving type

Platform moving

Structure

Cast iron body and gantry

Water cooling system

Stainless steel water slot

Working table

Aircraft aluminum T slot

Guide rail

Taiwan Hiwin square guide rail

Transmission

Taiwan TBI Ball screw for X Y Z-axis ( YYZ-axis: #1605)

Driving mode

Stepper motor

Spindle motor

2.2kw mould water cooling

Spindle speed

0-24000rpm

Spindle collet type

ER 11

Cutters diameter

3.175mm 4mm 6mm 8mm 10mm 12.7mm

Voltage

AC 220V, 50/60Hz, single phase

Empty traveling speed

0-8000mm/min

Engraving speed

0-6000mm/min

Machine accuracy

0.03mm

Diagonal error

0.5mm

Resetting accuracy

0.05mm

Control system

Mach3

Options:(PCI NcStudio,DSP offline )

Motor wire

High soft specially for Numerical Control( 4*0.75)

Spindle wire

Shielding high soft (3*1.5)

Carving Instructions

G code *Uoo *mmg *plt HPGL

Control software

Artcam, Options(Type3, Ucancam,JDPaint,powermill etc)

Running environment temperature

0-45 °C

Relative humidity

30%-75%

Tools

Total 15 pieces

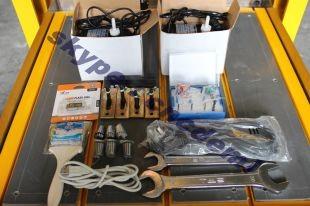

Accessories

Water pumps(2), tools(15), power line, USB line, fixtures(4), user manual,

software CDs, PCI NcStudio card(1), collets(3), spanners(2), brush(1), water tanks

Samples of separate cnc router machine for wood/metal/stone cutting and engraving: :

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

separate cnc router machine for wood/metal/stone cutting and engraving 6060(600*600*250mm)

Welcome for your enquiry !~
