2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)
Specifications
Place of Origin :
China Mainland
Brand Name :
cnc-machiningcam
Certification :
CE
Model Number :
zk-1325 (1300*2500*300mm)
MOQ :
1 set
Price :
4300-6800$
Packaging Details :
Strong plywood package
Delivery Time :
3-15 working days
Payment Terms :
T/T ,ESCROW,WESTON-UNION
Supply Ability :
350 SETS/MONTH
Description

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

Samples of Servo marble stone cnc router:

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

2D/3D effects servo marble stone cnc router ZK-1325(1300*2500*300mm)

Features of Servo marble stone cnc router:

1.X Y axies gear rank,Z axies Taiwan TBI ball screw, high precision and high speed.

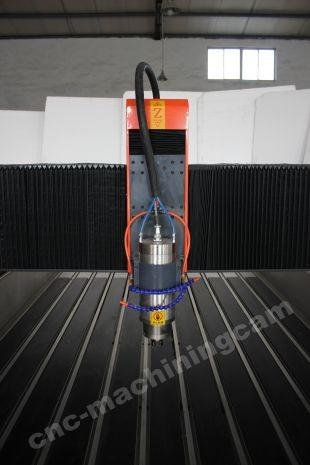

2.5.5KW China water cooling spindle, more powerful and not easy to break tools.

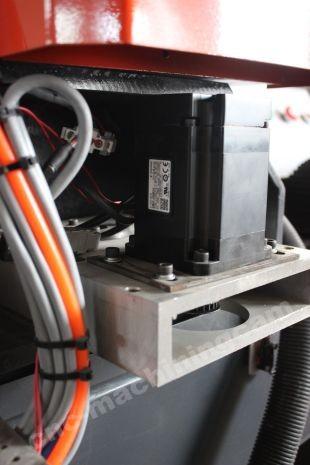

3. Japan YASKAWA servo motor and driver ,higher speed ,high precise,long use life.

4. Design working area larger than actual working area , prevent the crush . Intelligent protecting the

working table, can prevent the damage by wrong operation.

5.Emergency stop button, ensuring the operation safe.

6. Good software compatibility, suitable for Type3, Artcam,solidworks, Ucanam, JDpaint.also quitable for CAD/CAM .

8.DSP offline control system ,easy operate and control.

Application of Servo marble stone cnc router:

1.Suitable for natural marble, granite, bluestone, sandstone, artifical stone, tombstone, milestone,

ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo,stainless steel, iron, copper,

aluminium, titanium alloy.

2.Doing 3D embossment, and line engraving, bevelling, drilling 2D engraving.

3.Granite stone can be layered engraving to 5mm.

4. Marble, bluestone can be engraving to 5mm one time.

5.Engraving characters,letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy,

abrazine colored drawing, flat carving colored drawing, etc

6,Depth can control optionally, to reach the artistic effect .

Parameter of Servo marble stone cnc router:

Items

Parameter

Spindle power

5.5KW water cooling spindle

X,Y,Z axies working size

1300*2500*300mm

Spindle speed

0-24000rpm/min

Empty travelling speed

0-32000mm/min

Engraving speed

0-16000mm/min

Machine accuracy

0.03mm

Resetting accuracy

0.05mm

Diagonal error

1mm

Resolution ratio

0.005mm

Moving method

Gantry moving

Machine’s structure

Heavy duty Cast iron body

Working table

Aircraft aluminium T slot with PVC layer

Guide rail

Taiwan Yintai squire guide rail

X,Y,Z axies Transmission

X,Y,axies gear rank

Z axies Taiwan TBI ball screw

Driving system

Japan YASKAWA servo motor and driver

Tool collet type

ER 25

Suitable tools diameter

3.175mm, 4mm, 6mm,8mm 10mm 12.7mm

Control system

DSP offline

(Options: Mach3 ,PCI Nc-Studio)

Designing software

Artcam 2008

Minimum line diameter

6-8mil

Minimum line spacing

8mil

Minimum step distance

0.003125mm

Motor wire

High soft specially for Numerical Control( 4*0.75)

Spindle wire

Shielding high soft (3*1.5)

Carving Instructions

G code *Uoo *mmg *plt *HPGL

Running environment temperature

0-45 °C

Relative humidity

30%-75%

Voltage

380V ,50/60Hz,three phase

Certificate

CE

Tools

Total 12 pieces

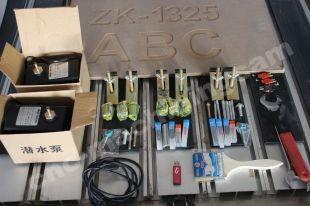

Accessories

Water pump(2), tools (12), power line, USB line, fixtures(6), user manual,

software CDs,

spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank(1),etc.

Your enquiry is welcome!!
