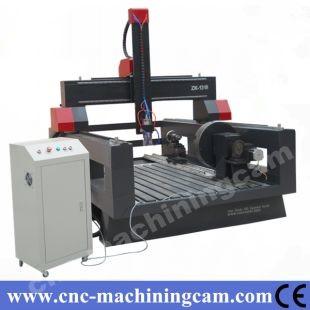

Items

Parameter

Spindle power

5.5KW water cooling spindle

X,Y,Z axies working size

1300*1800*800mm

Spindle speed

0-24000rpm/min

Empty travelling speed

0-32000mm/min

Engraving speed

0-16000mm/min

Machine accuracy

0.03mm

Resetting accuracy

0.05mm

Diagonal error

0.5mm

Resolution ratio

0.005mm

Moving method

Gantry moving

Machine’s structure

Heavy duty Cast iron body

Working table

Aircraft aluminium T slot with PVC layer

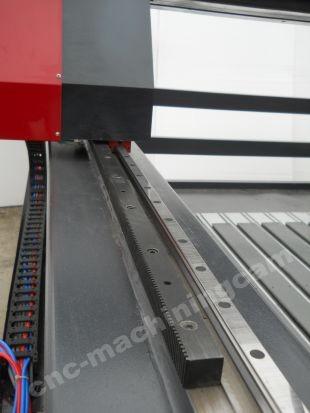

Guide rail

Taiwan Yintai squire guide rail

X,Y,Z axies Transmission

X,Y,axies gear rank

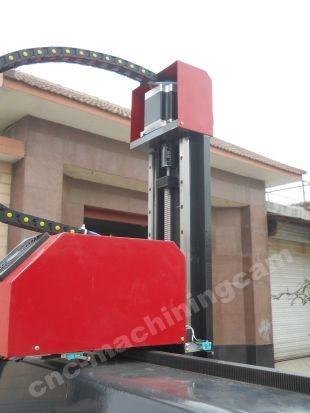

Z axies Taiwan TBI ball screw

Driving system

Stepper motor and leadshine driver

Tool collet type

ER 25

Suitable tools diameter

3.175mm, 4mm, 6mm,8mm 10mm 12.7mm

Control system

PCI Nc-Studio

(Options: Mach3 ,DSP offline)

Designing software

Artcam 2008

Minimum line diameter

6-8mil

Minimum line spacing

8mil

Minimum step distance

0.003125mm

Motor wire

High soft specially for Numerical Control( 4*0.75)

Spindle wire

Shielding high soft (3*1.5)

Carving Instructions

G code *Uoo *mmg *plt *HPGL

Running environment temperature

0-45 °C

Relative humidity

30%-75%

Voltage

380V ,50/60Hz,three phase

Certificate

CE

Tools

Total 12 pieces

Accessories

Water pump(2), tools (12), power line, USB line, fixtures(6), user manual,

software CDs,

spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank(1),etc.
