Bumper Pipe Manufacturing Equipment Metal Circular Sawing Machine With Hand Movement
Bumper Pipe Manufacturing Equipment Metal Circular Sawing Machine With Hand Movement
Bumper Pipe Manufacturing Equipment Metal Circular Sawing Machine With Hand Movement
Bumper Pipe Manufacturing Equipment Metal Circular Sawing Machine With Hand Movement
Specifications
Brand Name :
HUIPU
Model Number :
275F
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 SETS/WEEK
Delivery Time :
10 DAYS
Packaging Details :
1 SET/WOODEN CASE
Product name :
metal circular sawing machine with hand movement
Model :
275F
Category :
pipe manufacturing equipment
Applicable solid rectangular steel :
60×60/45×45
Applicable solid shafting :
φ38mm/φ25mm
Usage :
bumper
Description

Pipe manufacturing equipment with easy operation applying to brake fuel pipe cutting

-- Description of machine

The metal circular saw machine belongs to the classification of the pipe cutting machine. It is similar to the function of the band sawing machine and is used for the cutting of metal materials. To be exact, the metal circular sawing machine is a modified version with a sawing machine.

Metal circular sawing machine is a new type of equipment for metal cutting. The machine is mainly used for metal bar cutting (hollow, solid can be), using clamping feeding, cutting surface smooth and no burr, cutting precision, cutting speed 4-12mm/sec.

The vertical slide way advances and retracts the knife, the feed structure is firm, the movement is accurate, and the floated seat is not damaged.

-- Mechanical features

1. No flash, no dust. Bilateral two-way clamps make the work piece smooth and without burrs. Low noise and low pollution when sawing.
2. Accurate, fast and smooth. The precise cutting speed exceeds the band saw and the bow saw, while the cut surface is clean and does not generate heat.
3. Bevel or slot milling. The nose can be adjusted obliquely or by milling. The angle is accurate and the pipe interface is perfect.
4. Cooling system. Circulating cooling system, with a large capacity of oil drums, to ensure the life of the saw blade, flat cutting.

-- Main technical parameter

Main motor (kw) 2/4 pole changing 1.8/1.3
Spindle speed RPM96/48
Applicable saw blade (mm) High-speed steel saw blade
Outer diameter 250/275
Cooling water pump (w) 90
Used compressed air (Mpa) 0.4-0.6
Weight (kg) 250

Cutting direction 90 degree 45 degree
Hollow pipe 80 60
Hollow square steel 60×60 45×45
Hollow rectangular pipe 60×80 45×60
Solid rectangular steel 60×60 45×45
Solid shafting 38 25
Solid square steel 38 25

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

-- Company service

Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service. And we can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

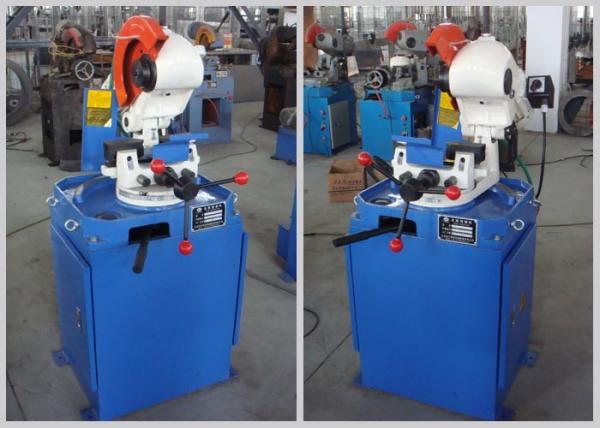

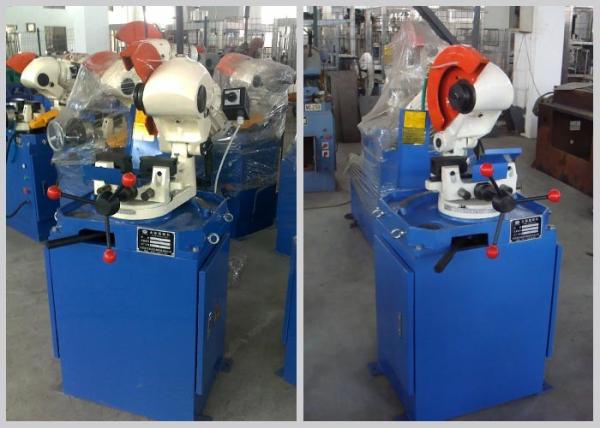

-- Pictures of machine

Bumper Pipe Manufacturing Equipment Metal Circular Sawing Machine With Hand Movement
