-- Machine details

1. The machine is controlled by the computer, hydraulic drive, English screen display, man and machine dialogue operation, can choose manual, semi-automatic, operation mode, movable pedal switch have start and emergency stop function.

2. It can be according to the pipe's length and adjust the distance of machine head.

3. It can process the pipe two ends with high efficiency and high accuracy.

4. Microcomputer control and hydraulic pressure actuation for working steadily.

5. The machine has motion pedal switches, can tightly stop and continuously tightly stop. It has high security.

6. The machine can carry on the pipe contracting, pipe expanding, pipe obtusing and other kinds of processing. It is the ideal pipe end shaping machinery.

7. Equipped with emergency stop device. Both manual and automatic operations are available.

8. Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length.

9. Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow.

10. The machine is with the syraight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in the iron pipes, furniture, automobile air conditioners and fuel oil pipes.

-- Brief introduction

The tube end forming machine is a hydraulic automatic pipe end processing machine that controls the end face of the pipe under the normal condition by expanding and shrinking the pipe, and is controlled by an integrated touch display screen. The pipe can be expanded, contracted, bulged, and replaced by the replacement of the die. Ribs and other pipe end processing molding, according to the needs of users can freely determine the use of manual, jog or automatic machining machine tools from the tank, bed, slider, the main fuel tank, mold core rod (optional), limit cylinder, compression cylinder , clamping mold and axial positioning cylinder, axial positioning angle iron and other major components.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Specifications of machine

-- Company service

1. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

2. We guarantee machine quality for one year warranty period. During this year, we can send the component to the customer freely if spare parts of the machine were damaged.

3. Our company can send engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

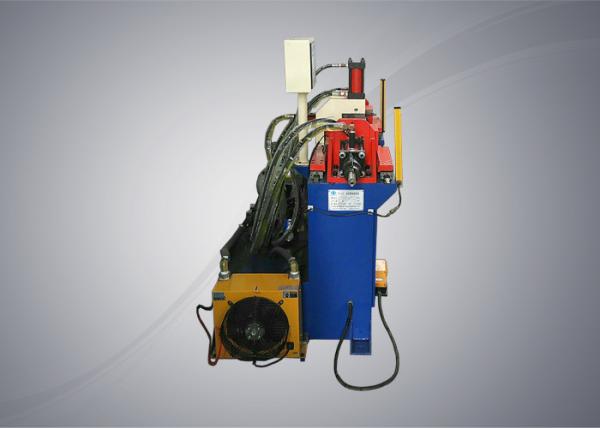

-- Pictures of machine
