High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
Specifications
Brand Name :
HUIPU
Model Number :
GD160
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 SETS/WEEK
Delivery Time :
10 DAYS
Packaging Details :
1 SET/WOODEN CASE
Product name :
single-head tube end forming machine
Model :
GD160
Machine type :
pipe end forming machine
Application :
large-scale shipbuilding
Max. oil pressure :
optional
Function :
pipe end forming with two stations
Description

Semi automation pipe end forming machine applying to pipeline transportation

-- Brief introduction

Tube end forming machine is widely used in pipe fittings, automotive oil pipe, air pipe, water pipe, air conditioning pipe and other parts of the processing molding, is an ideal pipe end molding processing equipment. It can process shapes include: convex, concave section, long flat, square , extension oblique, V-shaped, open elbow, flat mouth elbow, etc. according to product manufacturing.

One of the machine functions, tube necking is a molding process that reduces the diameter of the tube end. The tube blank acts as an axial force into the deformation zone, produces a tangentially shrinking plastic deformation in the deformation zone, then enters the stable zone, and finally forms a reduced end diameter. And the flaring of the pipe is another forming process that enlarges the diameter of the end of the pipe blank. It is widely used for forming the connecting parts such as pipe connection, automobile oil pipe, water pipe, air conditioning pipe, etc. It is an ideal pipe end forming processing equipment.

-- Machine characteristics

1. Forming shapes can be convex. Concave, sectional, long and flat, square, V-shape, open elbow, flat elbow…etc. The design of the tooling varies with work-piece and customers’ requirements.

2. Two positions configuration: can reduce two times together, use the line guide as its carrier, makes its operation free abrasion, good repetition.

3. Process shapes: protrude, concave, joint, square, V type and so on. Just according to the customer’s requirements.

4. It can according to the pipe’s length and adjust the distance of machine head. It can according to the pipe length and choose single clamping and double clamping.

5. Suitable for the shrinking of various metal pipes with different material and different shape.

6. All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.

7. Equipped with emergency stop device. Both manual and automatic operations are available.

8. Shrinking stroke 150mm. The length of working piece is 4500mm Max. (but no limit on the minimum length).

-- Main technical parameter

Maximum applicable pipe diameter Φ160mm*2.0t
*Maximum working length 180mm
Oil pressure 14Mpa
Working speed 140mm in 6-7/s
Size of machine 3200*750*1500mm
Weight 1900kg
*The max processing length can according to customer’s requirement.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

-- Company service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

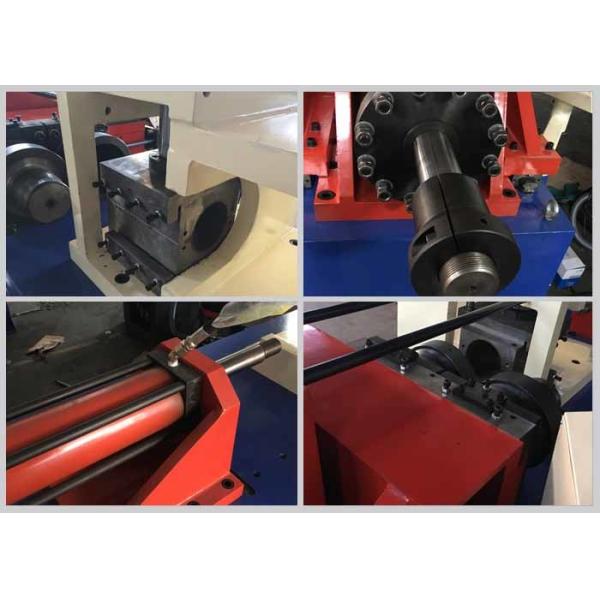

-- Pictures of machine
High Efficiency Tube End Forming Machine , Metal Copper Pipe Forming Machine
