The tube end forming machine is suitable for the processing of the complicated shape of the tube end. With one, two or three station(s), it can automatically change the mold to ensure the processing accuracy. Manually select automatically, NC control, Chinese display, man-machine dialogue operation, and automatic counting function. Replace the mold, shrink tube, flare can be processed, while chamfered with a mold, so that processing chamfering can be completed at one time. It is widely used for forming the connecting parts such as pipe connection, automobile oil pipe, water pipe, air conditioning pipe, etc. It is an ideal pipe end forming processing equipment.
The use of different molds can realize the expansion, shrinkage, shrinkage, bulging, and ribbing of the pipe fittings, and can be manually, jogged or automatically processed according to user requirements. It is mainly composed of oil tank, body, slider, main cylinder, limit cylinder, pressure cylinder, displacement cylinder, axial positioning cylinder and axial positioning iron.

-- Machine characteristics

1. The machine is with hydraulic synchronic system, make sure the processing accuracy.

2. Microcomputer control, hydraulic pressure actuation, it works steadily.

3. The motion pedal switches, tightly stops, continuously tightly stops, high security.

4. The machine may carry on the pipe contracting, pipe expanding, pipe obtusing and other kinds of processing. It is the ideal pipe-end shaping machinery.

5. The mold replacement is simple which is advantageous for the elastic production.

6. A total of 1-6 stations are available for equipment selection and can automatically change molds. The use of different molds can achieve the expansion, shrinkage, shrinkage, bulging, and abutment processing of tubes to ensure the accuracy of the products.

7. Feeding mode can be manual or automatic, through the NC control system, Chinese and English display interface, man-machine dialogue operation, and automatic counting function.

8. Process shapes: protrude, concave, joint, square, V type and so on. Just according to the customer’s requirements.

-- Main technical parameter

-- Applicable industry

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

Automobile fittings, brake lever, silencer, seats, motorcycle, body-building equipment, air conditioner, bicycle, steel-made furniture, sanitation equipment and other manufacturing trades.

-- Packaging and service

1. Package: Wooden case.

2. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

3. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

4. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

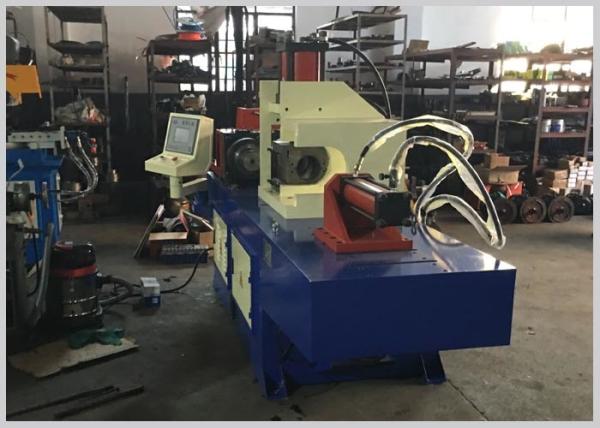

-- Pictures of machine
