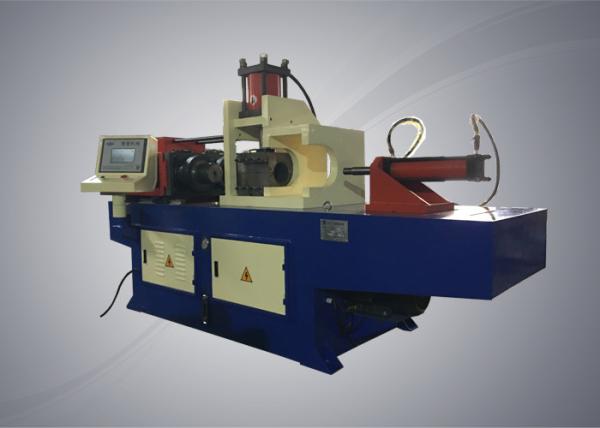

Tube end forming machine is widely used in pipe fittings, automotive oil pipe, air pipe, water pipe, air conditioning pipe and other parts of the processing molding, is an ideal pipe end molding processing equipment. It can process shapes include: convex, concave section, long flat, square , extension oblique, V-shaped, open elbow, flat mouth elbow, etc. according to product manufacturing.

The tube end forming machine is suitable for the processing of the complicated shape of the tube end. With one, two or three station(s), it can automatically change the mold to ensure the processing accuracy. Manually select automatically, NC control, Chinese display, man-machine dialogue operation, and automatic counting function. Replace the mold, shrink tube, flare can be processed, while chamfered with a mold, so that processing chamfering can be completed at one time. It is widely used for forming the connecting parts such as pipe connection, automobile oil pipe, water pipe, air conditioning pipe, etc. It is an ideal pipe end forming processing equipment.
The use of different molds can realize the expansion, shrinkage, shrinkage, bulging, and ribbing of the pipe fittings, and can be manually, jogged or automatically processed according to user requirements. It is mainly composed of oil tank, body, slider, main cylinder, limit cylinder, pressure cylinder, displacement cylinder, axial positioning cylinder and axial positioning iron. By setting a tubular throttle valve on the main cylinder circuit, the working speed of the main cylinder can be adjusted; a stackable hydraulically-controlled one-way valve is provided on the cylinder circuit of the compact cylinder to ensure that the mold is not loosened during the clamping process; A bi-directional throttle valve is arranged on the hydraulic cylinder, the limit cylinder and the axial positioning cylinder, and the two-way movement speed of the cylinder can be adjusted. The shifting cylinder and limit cylinder are used in conjunction with the conversion station to facilitate the conversion of the station position and accuracy, thereby ensuring the quality of the tube processing.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares, automobile fittings, brake lever, silencer, seats, motorcycle, body-building equipment, air conditioner, bicycle, steel-made furniture, sanitation equipment and other manufacturing trades.

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Terms of service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

-- Specifications of machine

-- Pictures of machine
