Electric control system hydraulic pipe bending machine for aluminum pipe bending

-- Brief introduction

In the process of pipe bending, the outer diameter and thickness of different pipes and the different bending radius directly lead to the different bending moment of the pipe. Therefore, the design of the pipe bending machine needs to calculate and determine the bending moment of the pipe first. The size of the pipe is directly related to the power of the motor and the type selection of the transmission mechanism. This series pipe bending equipment has the advantages of low price and convenient use, and it occupies the leading position in the domestic bending machine market.

It can bend the pipe under cold state (single mode) or two bend radius (double modes). It is widely used in the bending of various pipes and wires in the automotive and air conditioning industries. Under the control of the hydraulic, it can bend various specifications of metal pipe and special shaped pieces of metal in the cold state within the specified range. It is a European style bending equipment which is professional, high-speed and economical.

-- Mechanical features

1. Adopting solenoid valve and integrated circuit to control each motion separately, which will extend the life of the parts of hydraulic system.

2. Three-step circuit is with the functions of cooling and sedimentation to keep hydraulic oil from deterioration.

3. Main shafts are heat-treated specially and the bending arm is made of special forged steel.

4. All the parts are made under very strict quality control so that the quality of machine is good and specification is standardized.

5. The machine is with emergency stop device.

6. Both manual and automatic operation are available.

7. Various angles can be set.

8. You can bend one pipe with several bending on one machine only to save the time of pipe re-loading and unloading among.

9. The control panel has clear description for every button or gauge, so non-technician can operate our machine correctly.

10. The NC model machine provides a memory of 200 programs, each program with 20 bends or angles.

11. The bending degree control by Japanese-made micro encoder.

12. The machine can produce many kinds of sophisticated application as customer requirements and goes a low labor cost.

-- Main technical parameter

-- Applicable industry

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares, automobile fittings, brake lever, silencer, seats, motorcycle, body-building equipment, air conditioner, bicycle, steel-made furniture, sanitation equipment and other manufacturing trades and so on.

-- Company service

1. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

2. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

3. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

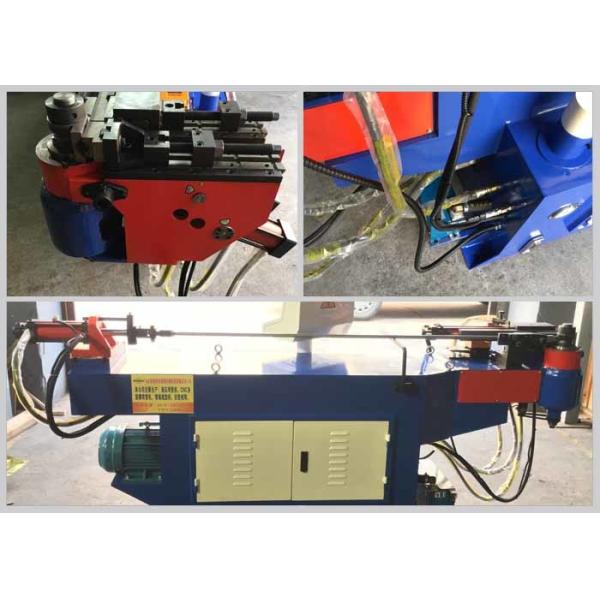

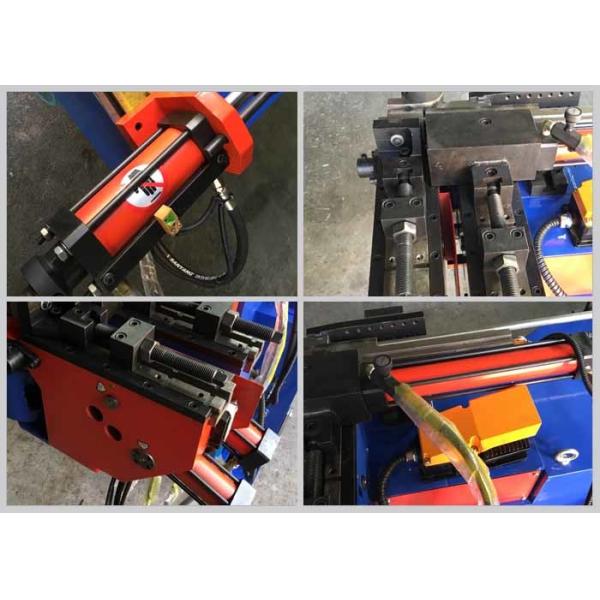

-- Pictures of machine
