By setting pipe throttle valve in the main cylinder circuit, the working speed of the main oil cylinder can be adjusted, and the superimposed liquid controlled one-way valve is set on the pressure cylinder circuit to ensure that the die clamping process is not loose; the superimposed two-way throttle valve is set on the displacement oil cylinder, the restricted oil cylinder and the axial positioning cylinder circuit, which can adjust the two-way motion speed of the cylinder. The shift cylinder and the limit oil cylinder cooperate with the conversion station, which makes the workstation transformation convenient and accurate, so as to ensure the quality of pipe fittings.

The machine can use different moulds to expand, shrink, shrink tube, drum and pier, and make use of manual, point motion or automatic processing according to the requirements of the user.

Pipe end forming machine is widely used for pipe connection, automobile oil pipe, water pipe, air conditioner pipe and other parts processing and shaping. It is an ideal tube end forming processing equipment.

-- Machine details

1. The machine is controlled by the computer, hydraulic drive, English screen display, man and machine dialogue operation, can choose manual, semi-automatic, operation mode, movable pedal switch have start and emergency stop function.

2. It can be according to the pipe's length and adjust the distance of machine head.

3. It can process the pipe two ends with high efficiency and high accuracy.

4. Microcomputer control and hydraulic pressure actuation for working steadily.

5. The machine has motion pedal switches, can tightly stop and continuously tightly stop. It has high security.

6. The machine can carry on the pipe contracting, pipe expanding, pipe obtusing and other kinds of processing. It is the ideal pipe end shaping machinery.

7. Equipped with emergency stop device. Both manual and automatic operations are available.

8. Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length.

9. Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow.

10. The machine is with the syraight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in the iron pipes, furniture, automobile air conditioners and fuel oil pipes.

-- Specifications of machine

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

-- Company service

1. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

2. We guarantee machine quality for one year warranty period. During this year, we can send the component to the customer freely if spare parts of the machine were damaged.

3. Our company can send engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

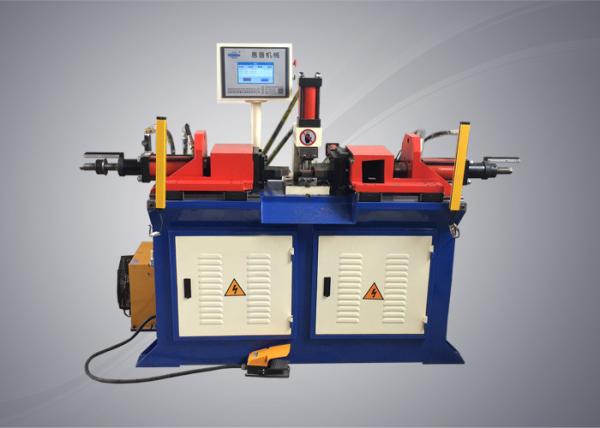

-- Pictures of machine
