Hydro cylinder servo control cnc pipe bending machine for copper or aluminum tube bending

-- Brief introduction

The CNC full-automatic numerical control bending machine control system adopts the color touch screen operation display, and can calculate the processing data according to the actual input pipe data, and can input, edit, store and display various bent pipe data and instructions. XYZ coordinates can be automatically converted to YBC processing values, while the machine's various movement coordinates are under the computer's accurate control, it can achieve automatic core bending, and has fault self-diagnosis, power failure memory, automatic lubrication, safety protection And other advanced features. The bending machine (C axis), rotating tube (B axis), and delivery tube (Y axis) are all closed-loop servo control. The numerical accuracy of the rotary motion is ±0.1° and the numerical accuracy of the linear motion is ±0.1 mm.

-- Mechanical features

1.The use of touch screen with computing computer, strong features, high scalability.
2. With three-dimensional graphics preview and interference preview function.
3. It can set speed in sections, the precision of the elbow pipe is high, and you can use the decomposing action in real bending to observe the interference point, modify the action and increase the efficiency.
4. Manual, automatic, semi-circular, full cycle and other functions are arbitrarily selected.
5. According to the actual set of pipe data simulation three-dimensional graphics, preview.
6. Accurately calculate the processing data according to the elbow file, and the interference can be intuitively detected before the actual processing, which greatly reduces the trial debugging costs.
7. Large arc tube processing function (with push function).

-- Specifications of machine

-- Applicable industry

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Company service

1. We guarantee machine quality for one year warranty period. During this year, we can send the component to the customer freely if spare parts of the machine were damaged.

2. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

3. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

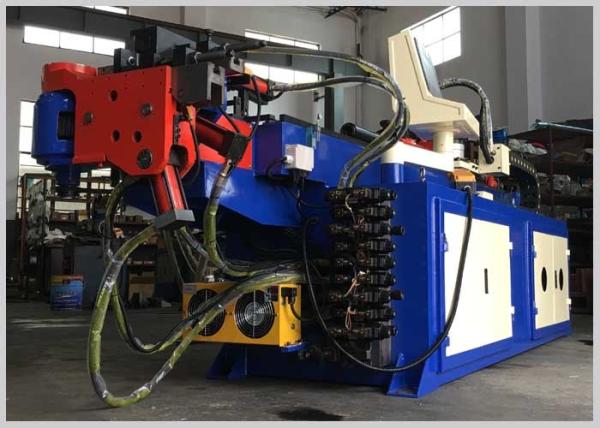

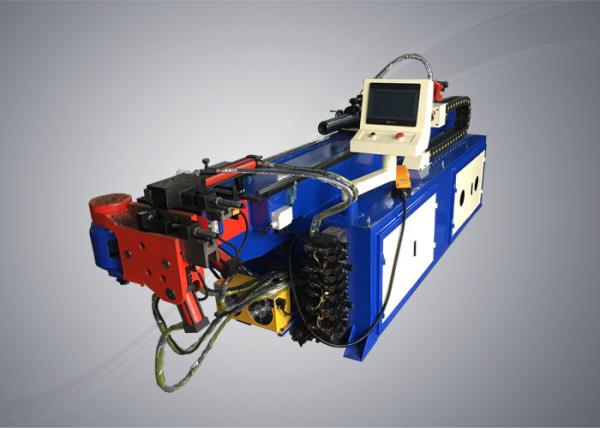

-- Pictures of machine
