Automatic pipe bending machine of heavy duty optional applying to recovery equipment

-- Brief introduction

This type of pipe bending machine is a three-dimensional bending machine that uses servo control for feeding and rotating. The accuracy of the two-axis control is greatly improved. All program writing and input are directly performed on the conversational touch screen; all information descriptions can be freely selected to be displayed in Chinese or English, and the operation is convenient and fast. Used in mass-produced or standardized products such as automobiles, exhaust pipes, bumpers and other three-dimensional pipe products.

-- Operating system instruction

Automatic mode interface. The automatic mode is that after the equipment has been manually adjusted (including mold, function, and parameters), the equipment can automatically carry out mass production of tubes.
1. File Name: Displays the name of the currently machined workpiece number.
2. A total of several bends and several bends, showing the effective number of bends and the current number of bends required for automatic bending.
3. Set value: Shows the value of Y feed, B corner, and C elbow in the fitting programming.
4. Current value: current Y feed, B corner, C bend value.
5. Elbow timing: The time taken for a tube to pass from the tube to completion of processing.
6. The preset output sets the number of pipes to be processed; the current output shows the number of completed pipes; it helps the user to master the production schedule. Press Zero to zero the current yield.
7. Before the automatic operation, you must first press the "Start" button, then follow the text prompts at the bottom of the interface to start the foot switch. If you need to pause during automatic operation, you can press the “pause” button or pause the foot switch, and then press “pause” or pause to stop the pedal switch to continue running. If “decomposition action” is ticked, the foot pedal must be pressed to start the next action every time you complete a step in the automatic operation.
8. In this interface you can switch to manual mode, single-bend mode, file management, I/O mode, or back to homepage (open machine interface).

-- Mechanical features

1. Decomposition action can be collected at the time of actual bending so as to observe interfere points, amend movement and improve efficiency.

2. Automatic recognition of power in machine work piece, processing both quick and good.

3. Slow returning core, boosted by barrow, improving the appearance of the angle.

4. Display of the whole process of operation in Chinese or English, and 15 inches true color monitor and touch screen to make simple, quick and correct programmes.

5. Rebound test, comparison test on the features of lots of pipe materials.

6. Single step debugging function, a careful observe on the deformation of the pipe material during the trail manufacture of dies.

7. Over-all inspection, hydraulic/electrical circuit/driving systems, absence of phase in motors/inversion, voltage, temperature, oil pressure and automatically diagnose the troubles.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe; rectangle pipe, square pipe, round pipe, etc..

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Specifications of machine

-- Packaging and service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

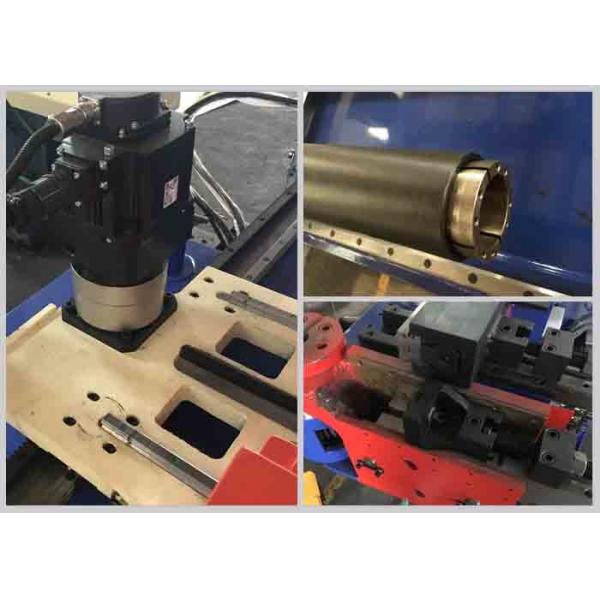

-- Pictures of machine
