Full automatic pipe bending machine with servo motor for medical bed manufacturing

-- Operating system instruction

Automatic mode interface. The automatic mode is that after the equipment has been manually adjusted (including mold, function, and parameters), the equipment can automatically carry out mass production of tubes.
1. File Name: Displays the name of the currently machined workpiece number.
2. A total of several bends and several bends, showing the effective number of bends and the current number of bends required for automatic bending.
3. Set value: Shows the value of Y feed, B corner, and C elbow in the fitting programming.
4. Current value: current Y feed, B corner, C bend value.
5. Elbow timing: The time taken for a tube to pass from the tube to completion of processing.
6. The preset output sets the number of pipes to be processed; the current output shows the number of completed pipes; it helps the user to master the production schedule. Press Zero to zero the current yield.
7. Before the automatic operation, you must first press the "Start" button, then follow the text prompts at the bottom of the interface to start the foot switch. If you need to pause during automatic operation, you can press the “pause” button or pause the foot switch, and then press “pause” or pause to stop the pedal switch to continue running. If “decomposition action” is ticked, the foot pedal must be pressed to start the next action every time you complete a step in the automatic operation.
8. In this interface you can switch to manual mode, single-bend mode, file management, I/O mode, or back to homepage (open machine interface).

-- Mechanical features

1. It has auxiliary push function, slow core removal function, bendable thin wall bending parts.
2. Electronic control system: It adopts well-known Japanese controllers with strong performance and good stability.
3. Mitsubishi's ultra-large CPU can accommodate 400 groups of file editors.
4. All processing data can be input by touch screen.
5. It uses a touch screen, plus numerical control module, dialogue-type operation, program set easily.
6. Error messages are displayed on the screen to help the operator eliminate them immediately.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe; rectangle pipe, square pipe, round pipe, etc..

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

House structure, shipyards, automobile production, industrial pipeline equipment, pulp, paper, chemicals, boilers, pump stations, site fresh water and wastewater systems, municipal heating and cooling systems, urban gas pipelines, municipal works such as hospitals, office buildings, construction and large-scale public buildings, medium and large-scale industries for maintenance and repair work, power stations, installation companies, automatic fire sprinkler systems in front of workshops.

-- Specifications of machine

-- Packaging and service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

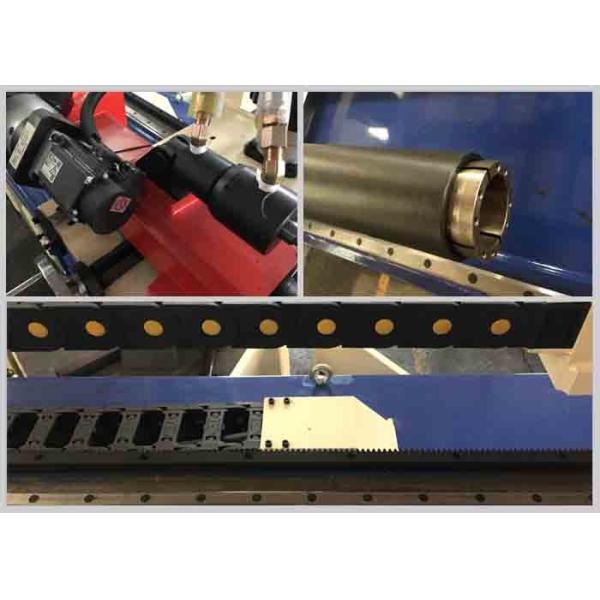

-- Pictures of machine
