Anti wrinkle function automatic pipe bending machine applying to exercise equipment

-- Machine details

CNC pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying, bridges, ships, furniture, decoration and other aspects of pipe laying and repair, which has many functions, reasonable structure, simple operation, easy movement, quick installation and so on. The machine can also use oil pump as a hydraulic jack. CNC pipe bending equipment has the advantages of low price and convenient use, and it occupies the leading position in the domestic bending machine market. CNC pipe bender can bend the pipe under cold state (single mode) or two bend radius (double modes). The bending machine (C axis), rotating tube (B axis), and delivery tube (Y axis) are all closed-loop servo control. The numerical accuracy of the rotary motion is ±0.1° and the numerical accuracy of the linear motion is ±0.1 mm.

-- Mechanical features

You can bend one pipe with several bending on one machine only to save the time of pipe re-loading and unloading.

The control panel has clear description for every button or gauge, so non-technician can operate our machine correctly.

The CNC/NC model machine provides a memory of 200 programs, each program with 20 bends or angles.

The bending degree control by Japanese-made micro encoder.

Bending angle can be adjusted freely from 0° to 190°.

Adopting solenoid valve and integrated circuit to control each motion separately, which will extend the life of the parts of hydraulic system.

Three-step circuit is with the functions of cooling and sedimentation to keep hydraulic oil from deterioration.

Various angles can be set.

-- Main technical parameter

-- Main application

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares, automobile, locomotive, motorcycle, ship, ship, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicle, fitness equipment, sports goods and other fittings.

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe; rectangle pipe, square pipe, round pipe and so on.

-- Terms of service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

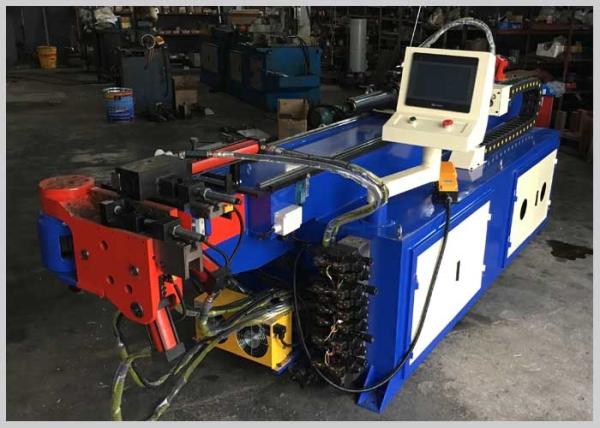

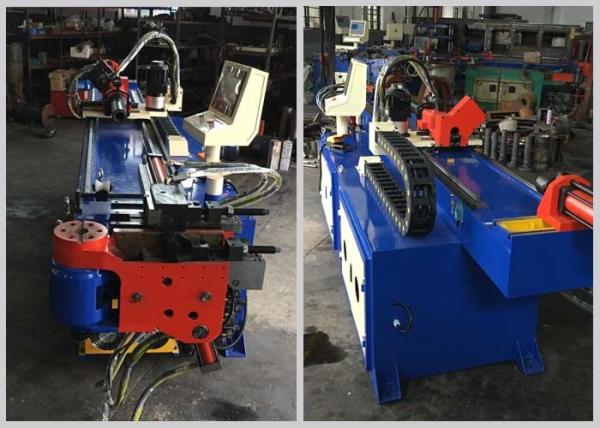

-- Pictures of machine
