Multi function automatic pipe bending machine applying to indoor furniture manufacturing

--Brief introduction

This single-head pipe bending machine of CNC series is a high-performance CNC pipe bending machine developed by our company. This series adopts VDU touch screen operation panel to control, can input, store and display various bent pipe data and instructions. Each axis servo of the machine tool under the control of the industrial computer realizes full-automatic fast feed, transfer, head movement, automatic multi-layer die change, automatic coreless and coreless bending. And it has part bending back compensation and faults advanced features such as self-diagnosis alarm, power-off memory, automatic lubrication and safety protection. The machine's technological advancement, automation degree of reliability, design integrity are all world-class pipe processing equipment.

--Mechanical features

1.Main shafts are heat-treated specially and the bending arm is made of special forged steel.

2.All the parts are made under very strict quality control so that the quality of machine is good and specification is standardized.

3.The machine is with emergency stop device.

4.Both manual and automatic operation are available.

5.Bending angle can be adjusted freely from 0° to 190°.

6.Adopting solenoid valve and integrated circuit to control each motion separately, which will extend the life of the parts of hydraulic system.

7.Three-step circuit is with the functions of cooling and sedimentation to keep hydraulic oil from deterioration.

8.Various angles can be set.

--Specifications of machine

--Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

--Terms of service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

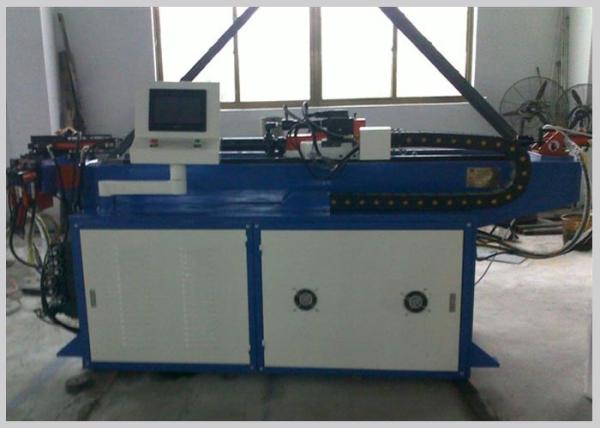

-- Pictures of machine
