CNC pipe bending machine with individualized design applying to electricity factory

-- Machine characteristics

1. Slow location function, repeated precision can reach ±0.1°.

2. Error will be displayed on the screen to help operators cancel the error immediately.

3. Coordinate transforming tube bending process value software developed by ourselves is provided for optional purchase.

4. It has a firm bed structure which is difficult to deform.

5. It can be installed to the computer for editing and calculating.

6. Electric control system: adopts famous controller in Japan, for example, the servo driver, servo motor, location mold group, CPU and so on from Mitsubishi, which is of high capability and excellent steadiness.

-- Specifications of machine

-- Installation points

1.The ground of this machine needs to be leveled. After it is placed, it should be adjusted to the body without shaking. The principle of not oscillating when moving, it is best to use expansion bolts to fix on the ground.
2. Before connecting to the power supply, make sure the voltage of the customer's power supply is consistent with the machine.
10%, regulators should be installed, the power supply must have a perfect grounding.
3. When the power is turned on, first check whether the direction of the oil pump motor is the same as the direction of the indication. After pressing the “Oil Pump Start” button, confirm whether the system pressure gauge reaches 70Kg/cm2 immediately after the oil pressure starts (normal working pressure range should be ≤ 12MPa). If the oil pump is running and the system has no pressure, it means that the motor runs in reverse. Please adjust any two wires in the three-phase power cable.
4. After the oil pump is started, before the return of the original point, the main clips, guide clips and auxiliary push buttons on the operation panel can all be operated. In this case, please remove the debris and obstacles on the machine and press the "Home Return Start" button. At this point, the screen displays the screen during the 3-axis zero point return operation. When completed, it automatically jumps to the operation mode selection item page.

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

--Company service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

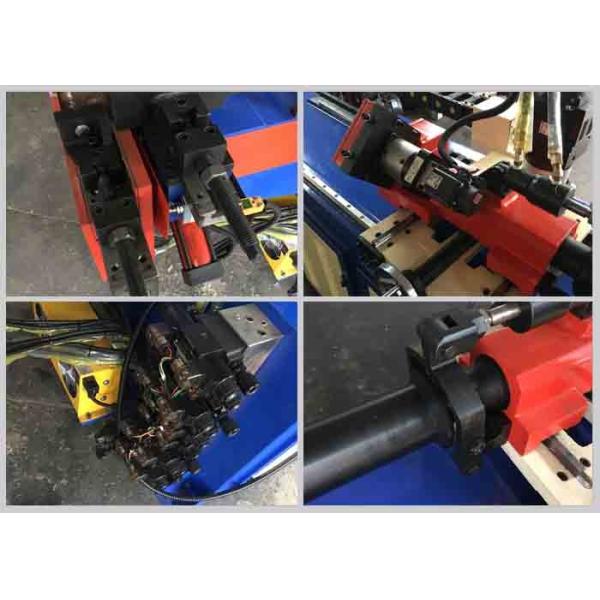

-- Pictures of machine
