220v / 380v Customized Voltage Exhaust Pipe Bending Machine With Microcomputer Control

--Machine details

This single head bending machines of CNC series uses the VDU touch screen panel control and it can input, store and display various pipe data and instructions. Three moving coordinate of the machine which is Y, B, and C are under the program control of the controller. This machine can bring about automatic mandrel or coreless type fast bending. It has advanced functions of revising the pipe bending compensation, alarming for the fault signal, power-off memory, automatic lubrication as well as safety protection. Bend (C axis), turning tube (B axis) and tube feeding (Y axis) are closed loop servo control.

It is mainly used for electric power construction, public railway construction, boiler laying, bridges, ships, furniture, decoration and other aspects of pipe laying and repair, which has many functions, reasonable structure, simple operation, easy movement, quick installation and so on.

-- Mechanical features

1. Electric control system: adopts famous controller in Japan, for example, the servo driver, servo motor, location mould group, CPU and so on from Mitsubishi, which is of high capability and excellent steadiness.

2. Extra large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.

3. Windows operating system is installed in the industrial computer to match with Mitsubishi servo system. Therefore, apart from the advantage of Mitsubishi servo drive, it owns the convenience of file management of Windows operating system. It can also store the files in hardware or disk to indefinitely expand edition groups.

4. Function of automatically detecting error and fault, which is displayed on the screen for operators to cancel the fault easily.

5. All the process documents are input by touch control screen.

6. Each bending tube can set compensation value, speed and gap between stripping according to the variety of differnet materials.

-- Specifications of machine

-- Main application

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

Aerospace, automobile, locomotive, motorcycle, ship, ship, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicle, fitness equipment, sports goods and other fittings.

-- Packaging and service

1. Payment terms: 30% T/T down payment and 70% T/T before shipment.

2. Delivery time: No later than 15 days since receiving the advance payment.

3. Validity of the price: For ONE month.

4. Package: Wooden case.

5. Warranty period: We guarantee machine quality for 12 months. During this period, if spare parts of the machine were damaged, we can send the component to the customer by international express service freely.

6. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

7. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

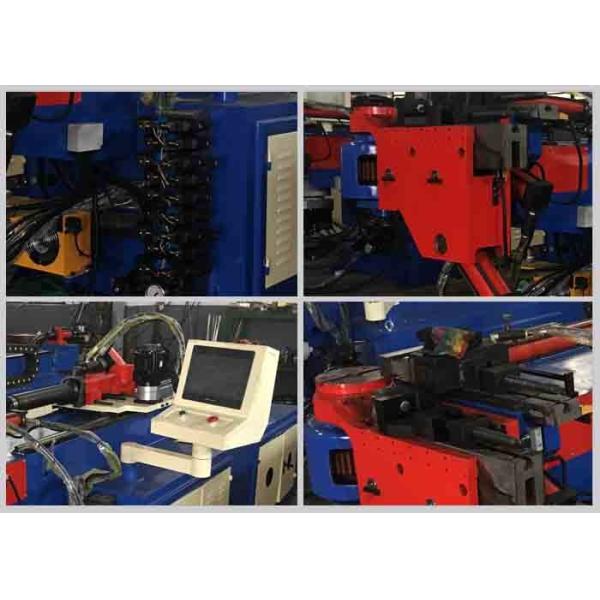

-- Pictures of machine
