Heavy Duty Steel Pipe Single Head Bending Machine For Recovery Appliance

-- Description of machine

This machine is equipped with hydraulic drive, and it's electrical control system adopts touch screen control, text control and PLC centralize control program. It is equipped with a clamping tube, guided mode, input core, wrinkle-free, auxiliary pushing and bending device. Its bending angle is controlled by high precision imported angle controller. Under the control of the hydraulic, it can bend various specifications of metal pipe and special shaped pieces of metal in the cold state within the specified range. It is a European style bending equipment which is professional, high-speed and economical.

-- Machine characteristics

1. It has various functions can be chosen, such as head operation, autoamtic, semi circulation, full-circulation and others.

2. Mobile type foot switch with three functions, automatic start, emergency stop and going on after emergency stop, all of them have high safety.

3. Model exchanging is simple and convenient to be convenient in flexible manufacturing.

4. High performance middle size pipe bending machine, NC control, multi-groups program and multi angles setting, makes your operation and setting convenient.

5. The machine is NC control and hydraulic drive, can have different bending degree to prefabricate.

6. Using high function machine hydraulic components imported from Japan.

7. In the hydraulic system of the pipe bender, the main oil cylinder, the main clamping cylinder, the guide cylinder and the material clamping cylinder are all controlled by hydraulic check valve, which reduces the pressure loss and ensures the bending, clamping and pressing action in the bending process.

8. The one-way throttle loop is used in the main oil cylinder, the main clamp cylinder, the guide cylinder and the mandrel cylinder, which makes the system speed adjustable and meets the different pipe bending process.

-- Main technical parameter

-- Applicable industry

Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on.

The machine uses the microcomputer control and has strong function and high expansion. Chinese subtitles and dialogue operation make the machine easy to study and understand. The partition hypothesis speed, high pipe-bending precision. 16 groups pipe-bending information storage. All angles work forms a coherent whole. It can install co-push, low returning-core function and can bend tubes with thin wall thickness.

-- Company service

1. Our factory provides service for customers forever, if the customer needs operation help or technical guidance, you can contact us by Email or telephone at any time, we provide 24 hours on-line service.

2. We guarantee machine quality for one year warranty period. During this year, we can send the component to the customer freely if spare parts of the machine were damaged.

3. We can send our engineers to the customer’s factory to install and train for using freely. The customers just need to provide the double trip tickets, food and accommodation for our engineers. The customer can also send your staff to our factory to learn the operation and maintains freely.

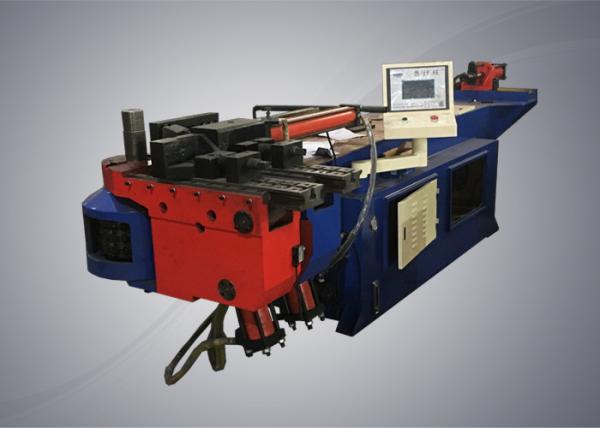

-- Pictures of machine
