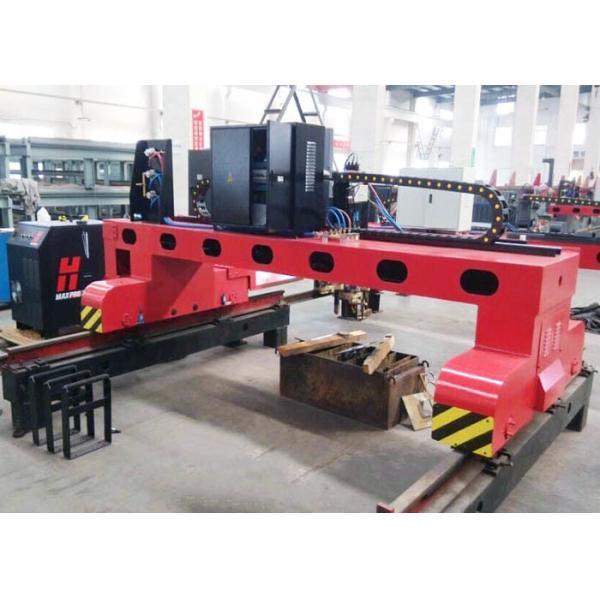

CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch
Specifications
Brand Name :
Metalwork
Model Number :
CNC-4000
Certification :
CE, ISO, CCC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
40 days
Packaging Details :
1 x 20' GP
Effective Cutting Range :
3200X10000mm
Voltage :
380V or Customized
Flame Cutting Thickness :
6-150mm
Plasma Cutting Thickness :
Depends on plasma source
Cutting Mode :
Flame or plasma cutting
Warranty :
1 year
Description

CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch

Wide, low center of gravity longmen frame structure is suitable for high speed motion, six axis linkage, infinite rotating cutting torch.

Deflection motor rotation with the rotary motor, the groove and groove cutting.

The torch high speed constant.

Equipped with cutting torch initial location and anti-collision device.

1. FRAME


Gantry box beam with good carrying capacity, high double sides drive,For the compact structure,sufficient to eliminate the welding stress,

its performance is stable and realiable.

2. GUIDE RAILS


Horizontal guide ralls using domestic or imported linear guide, is of high precision and good guidance.
Longitudunal guide ralls made from special metals,with grinding surface ,has very high mechanical precision and abrasion resistance.

3. DRIVE RACK,GEAR


Horizontal, longitudinal transmission use Germany NEUGART maintenance-free planetary gear reducer of high accuracy,large torque.low bak lash.

4.SERVO DRIVE


Our servo drive system is of Panasonic, character position detection function, high working precision and short acceleration time.


5.GAS SYSTERM

Equipped with automatic ignition, backfire prevention device, it is stable and secure.

Technical Parameters:

Model CNC3000 CNC3500 CNC4000 CNC5000 CNC6000 CNC7000 CNC8000
Effective Cutting Width (mm) 2200 2700 3200 4200 5200 6200 7200
Track Width (mm) 3000 3500 4000 5000 6000 7000 8000
Effective Cutting Length (m) 2m less than track length
Cutting Thickness(mm) Flame:5-120(Max 300mm) Plasma:1-80 (depends on the power of the plasma).
Basic components
Cutting Mode Plasma and Oxygen-fuel / flame
Drive Mode Servo motor, Dual-side
Cutting Torch Number Customization
Driving Motor Panasonic / Yaskawa
CNC Controller Micro EDGE Pro, EDGE Pro, KP, Burney, ESAB
Available Plasma Power Hypertherm, Kjellberg, Thermal Dynamics, ESAB
Programming software Hypertherm ProNest, Hypertherm TurboNest, FASTCAM Professional
Power voltage 3×380V±10% 50Hz / according to user's local condition
Operation language Multi language,Basic: English...

Cutting Samples:

CNC-4000X12000 Gantry Type Gas and Plasma Cutting Machine 1 Gas Torch 1 Plasma Torch

Our Services

Pre-sale Service
1. Supply item design, process design.
2. Help you chose the fit machine.
3. Manufacture the machine according to your and accessories.


Sale Service
1. Acceptance of equipment together with you.
2. Offer you help to make the operating insruction.
3. Any other help you need.


After-sale Service
1. One year warranty.
2. Free accessories due to quality problem.
3. Free repair whole using life (without the freight and accessories charge).
