Specifications
Brand Name :
WANGFA
Model Number :
WF-038
Certification :
ISO9001
Place of Origin :
Jiangyin, China
MOQ :
500KG
Price :
Negotiation
Payment Terms :
TT 30% Deposit
Supply Ability :
2400 tons per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic Film + EP Paper + Wooden or Plastic Pallet
Material :
Aluminum
Slot Width :
Negotiation
T-slot height :
Negotiation
Section size :
Negotiation
Hole :
Negotiation
Wall Thickness :
Negotiation
Description

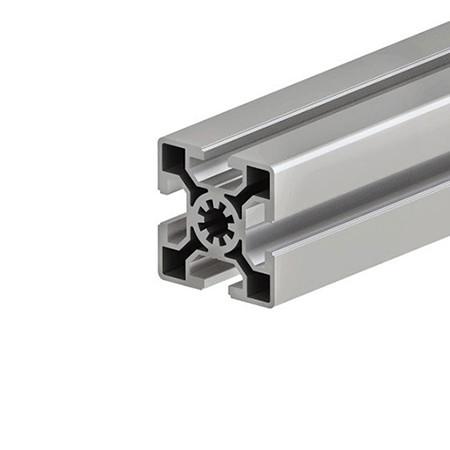

S8-50*50 Aluminium Extrusion T-Slot Profile

Specification

Code S8-50×50
Slot Width 8.2 mm
Weight 3.20 kg/m
Mass of Inertia lx: 25.81 cm4 ly: 25.81 cm4
Section Modulus zx: 10.32 cm3 zy: 10.32 cm3
T-slot height 12.0 mm
Section size 50 mm × 50 mm
Hole φ10.2 mm
Thickness of diagonal bar 1.9 mm
Wall Thickness 4.2 mm

50 Series 4.2mm Wall Thickness T Slot Profile Aluminum T Channel Extrusion 3.20kg/m

S8-5050 profile’s slot is 8.2 mm; it can be easily connected with 20 series and 30 series profile, large section size and extraordinarily flexible, general purpose, the heavy-duty profile for strong, rugged performance. Used for medium and large-sized frameworks such as building blocks, automation, work benches, safety guarding, display cabinets & stands and conveyors etc. M8 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

S10-50*50 Aluminium Extrusion T-Slot Profile

Specification

Code S10-50×50
Slot Width 10.2 mm
Weight 3.20 kg/m
Mass of Inertia lx: 20.34 cm4 ly: 20.34 cm4
Section Modulus zx: 8.14 cm3 zy: 8.14 cm3
T-slot height 12.3 mm
Section size 50 mm × 50 mm
Hole φ10.2 mm
Thickness of diagonal bar 1.9 mm
Wall Thickness 4.2 mm

50 Series 4.2mm Wall Thickness T Slot Profile Aluminum T Channel Extrusion 3.20kg/m

S10-5050 profile’s slot is 10.2 mm; it can be easily connected with 40 series, 45 series profile, large section size and extraordinarily flexible. Used for medium and large-sized frameworks such as building blocks, automation, work benches, safety guarding, display cabinets & stands and conveyors etc. M10 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

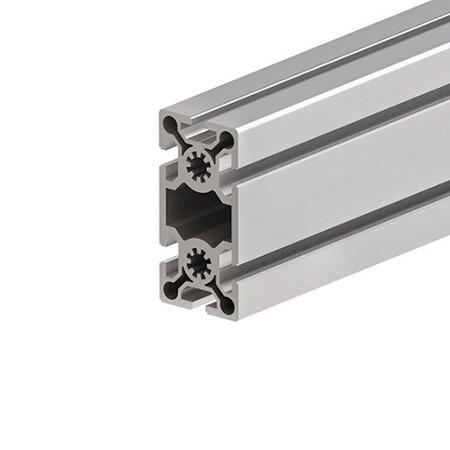

S8-50*100 Aluminium Extrusion T-Slot Profile

Specification

Code S8-50×100
Slot Width 8.2 mm
Weight 6.08 kg/m
Mass of Inertia lx: 191.09 cm4 ly: 51.21 cm4
Section Modulus zx: 38.22 cm3 zy: 20.48 cm3
T-slot height 12.0 mm
Section size 50 mm × 100 mm
Hole φ10.2 mm
Thickness of diagonal bar 1.9 mm
Wall Thickness 1.9 mm

50 Series 4.2mm Wall Thickness T Slot Profile Aluminum T Channel Extrusion 3.20kg/m

S8-50100 profile’s slot is 8.2 mm; it can be easily connected with 20 series, 30 series and s8-5050 profile, large section size and extraordinarily flexible. M8 screw or bolt and nut are optional to connect with other profiles.
50 series T-slot aluminium extrusion profiles can freely connect with each other.

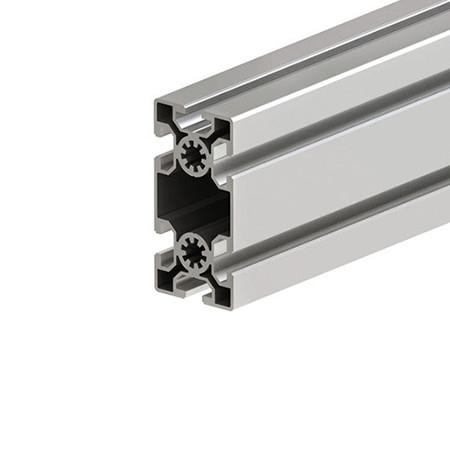

S10-50*100 Aluminium Extrusion T-Slot Profile

Specification

Code S10-50×100
Slot Width 10.2 mm
Weight 4.50 kg/m
Mass of Inertia lx: 152.61 cm4 ly: 36.17 cm4
Section Modulus zx: 14.47 cm3 zy: 30.52 cm3
T-slot height 12.3 mm
Section size 50 mm × 100 mm
Hole φ10.2 mm
Thickness of diagonal bar 1.9 mm
Wall Thickness 1.9 mm

50 Series 4.2mm Wall Thickness T Slot Profile Aluminum T Channel Extrusion 3.20kg/m

S10-50100 profile’s slot is 10.2 mm; heavy-duty profile where high strength is a must, a wide range of connecting and other parts is available for the slot 10 aluminium profiles and large section size and extraordinarily flexible. M10 screw or bolt and nut are optional to connect with other profiles. 50 series T-slot aluminium extrusion profiles can freely connect with each other.
