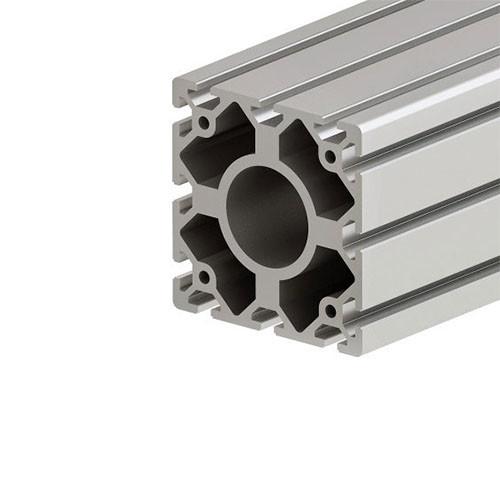

120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
Specifications
Brand Name :
WANGFA
Model Number :
WF-033
Certification :
ISO9001
Place of Origin :
Jiangyin, China
MOQ :
500KG
Price :
Negotiation
Payment Terms :
TT 30% Deposit
Supply Ability :
2400 tons per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic Film + EP Paper + Wooden or Plastic Pallet
Code :
WF-033
Slot :
8.2 mm
Mass of Inertia :
lx: 781.00 cm4 ly: 781.00 cm4
Section Modulus :
zx: 130.16 cm3 zy: 130.16 cm3
Height :
12.5 mm
Central hole :
φ56 mm
4 marginal holes :
φ12.5 mm
Wall thickness :
4.5 mm
Section size :
120 mm × 120 mm
Application :
Warehouse shelf, industry step ladder, large operation station and other special areas
Description

120 series T-slot aluminium extrusion profile and others have good mechanical properties, high connection strength and high bearing capacity; The surface is beautiful and generous, anti-corrosion and other characteristics. The user can design freely according to the actual needs, and install the perfect mechanical device. High precision parts make assembly process simple, reduce assembly difficulty, shorten workload, improve production efficiency.

Code WF-033
Slot 8.2 mm
Weight 16.16 kg/m
Mass of Inertia lx: 781.00 cm4 ly: 781.00 cm4
Section Modulus zx: 130.16 cm3 zy: 130.16 cm3
Height 12.5 mm
Central hole φ56 mm
4 marginal holes φ12.5 mm
Wall thickness 4.5 mm
Section size 120 mm × 120 mm

WF-033 extrusion is the second largest profile in the existing products. There is only one type in 120 Series T-Slot Aluminium Extrusion Profile. If you want to order please be sure to get in touch with us, we will inform the matters needing attention.

Large-sized and heavy-duty WF-033 profile usually are applied to warehouse shelf, industry step ladder, large operation station and other special areas.

120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf

120 Series 8.2mm Slotted Aluminum Extrusion Profiles For Warehouse Shelf
