3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered
Specifications
Brand Name :
Believe Industry Company
Model Number :
3Ton Hydraulic Decoiler
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 6,000
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
15 to 20 days
Packaging Details :
Wrapped With Plastic Flim
Capacity :
3Ton
Type :
Hydraulic Decoiler
Motor Power :
3kw
Hydraulic Power :
3kw
Description

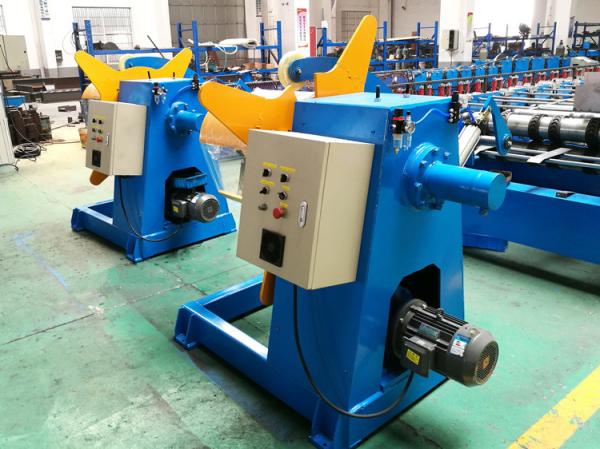

3Ton Hydraulic Decoiler

Brief Description

Main structure of 3Ton hydraulic decoiler is U-steel(beam steel) and steel plate welded frame. It is mainly composed of decoiler expansion and tension mandrel, pneumatic press arm, electrical control box, motor, hydraulic cylinder and hydraulic station, etc.

3Ton hydraulic decoiler is always a part of light gauge steel frame roll forming machine such as drywall stud and track forming machine, roof batten roll forming machine and strut channel forming machine, etc.

Main Parameters

1 Decoiler Mandrel Expansion And Tension Hydraulic expansion and tension
2 Expansion And Tension Power Hydraulic power offered by 3kw motor
3 Decoiling Type Electric decoiling
4 Decoiling Power 3kw
5 Expansion Range 480-520mm
6 Coil I.D 508mm is suitable
7 Coil O.D Max 1200mm
8 Coil Width Max 500mm
9 Capacity 3000kg

Pictures For Reference

3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered 3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

3 Ton Roll Forming Machine Parts / Hydraulic Decoiler 3KW Motor Powered

Believe Industry Company with more than 20 years' experience in metal forming machine designing and manufacturing.

* Best Metal Forming Machine Solution

* 20+ Years' Experience

* COPRA, AUTOCAD, SOLIDWORKS Assist In Machine Desiging

* Strict Quality Control On Every Procedure

* Test The Machine With All Material Clients Require

* 50 more countries and regions our technicians have been to commission the machine

* 24 Month Warranty, Lifetime Technical Support
