Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
Specifications
Brand Name :
Believe Industry Company
Model Number :
3Ton Electric Decoiler
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Supply Ability :
50 sets per month
Delivery Time :
15 to 20 days
Packaging Details :
Wrapped With Plastic Film
Capacity :
3000kg
Decoiler Mandrel Expansion :
Manual Adjust
Decoiling :
Elextric Decoiling
Motor Power :
3kw
Description

3Ton Electric Decoiler

Brief Description

3Ton electric decoiler can be used to fasten and uncoil small steel coils. It is a necessary part for roll forming line. Body of this decoiler is U-beam steel and steel plate welded structure. Main components are shaft, decoiler expansion and tension mandrel, electric motor and electric control box.

Main Parameters

1 Decoiler Mandrel Expansion And Tension Manual expansion and tension
2 Decoiling Type Electric decoiling
3 Decoiling Power 3kw
4 Expansion Range 480-520mm
5 Coil I.D 508mm is suitable
6 Coil O.D Max 1200mm
7 Coil Width Max 500mm
8 Capacity 3000kg

Difference Between 3Ton Electric Decoiler, 3Ton Manual Decoiler And 3Ton Hydraulic Decoiler

Decoiler 3Ton Manual Decoiler 3Ton Electric Decoiler 3Ton Hydraulic Decoiler
1. Capacity 3000kg 3000kg 3000kg
2. Type Manual Semi-Automatic Automatic
3. Mandrel Expansion Manual Adjust Manual Adjust Hydraulic Cylinder
4. Decoiling Non Powered Electric Drive Electric Drive
5. Decoiling Speed Roll Forming Speed 15m/min 15m/min
6. Price USD2,000 USD5,000 USD6,000

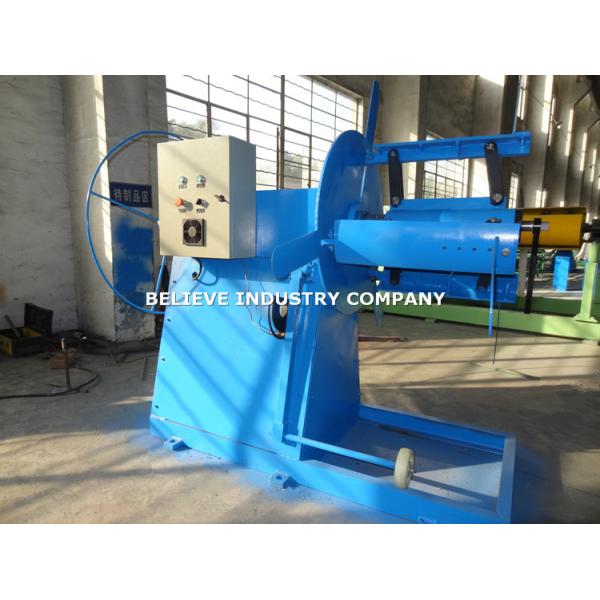

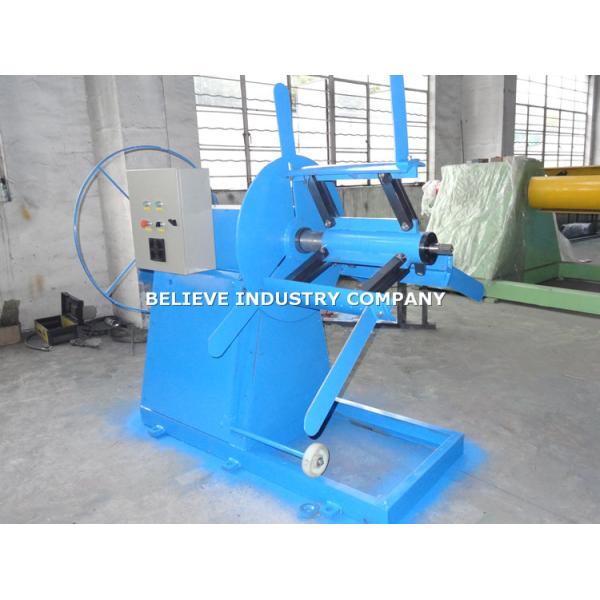

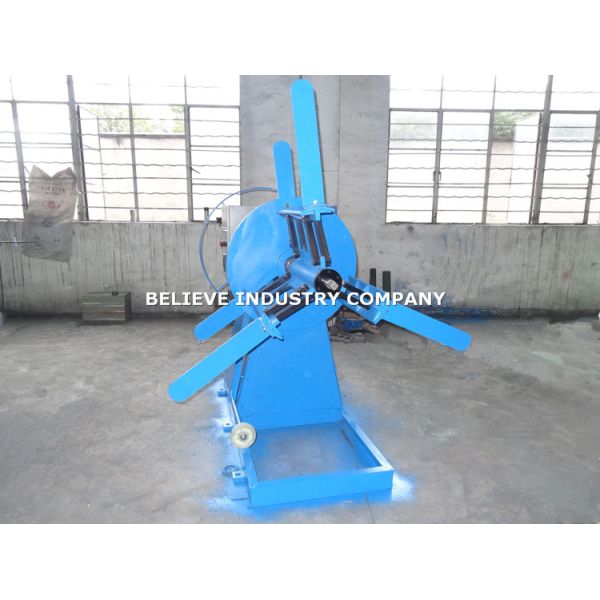

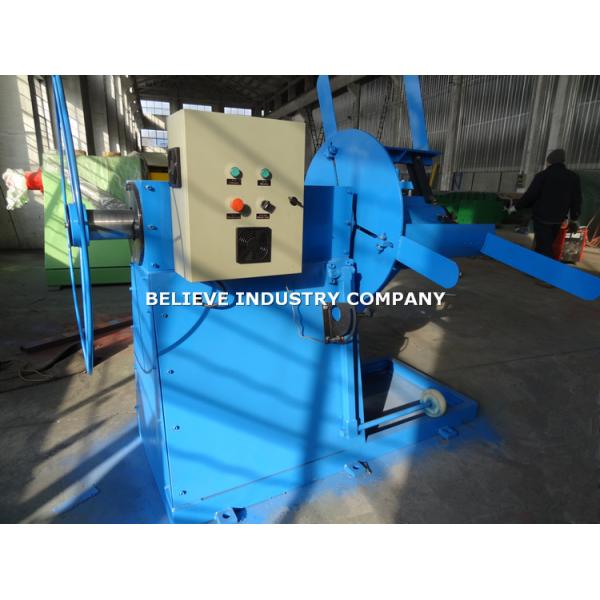

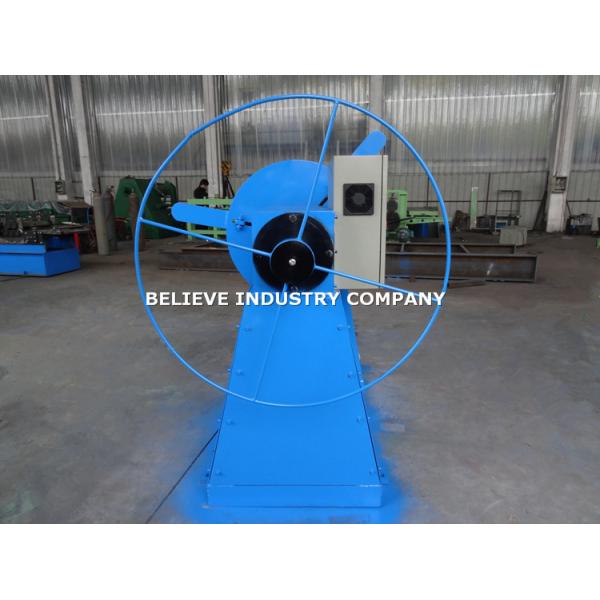

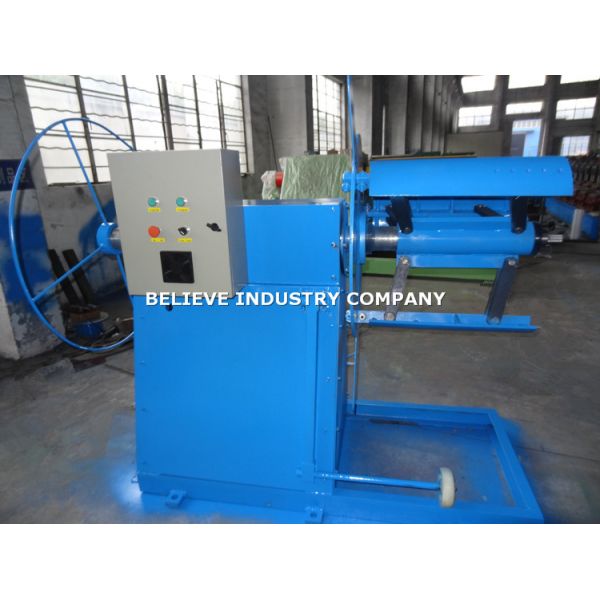

More Pictures For Reference

Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils

Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils

Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils Electric Decoiler 3000kg Capacity Type For Fasten & Uncoil Small Steel Coils
