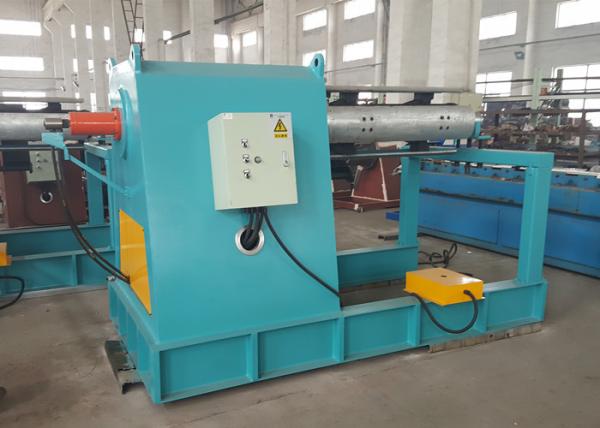

5Ton Single Mandrel Hydraulic Decoiler With Support Frame

Description

As a common accessory for roll forming machine, 5Ton decoiler is widely used for a metal roofing sheet roll forming line, steel floor decking sheet forming machine and cable tray production line, etc.

Believe Industry Company have 2 kinds of 5T uncoilers: 5T manual uncoiler and 5T hydraulic decoiler. Manual uncoiler is an economical design for clients if their budget is limited, but the manual one still has great performance. When clients need to unwind too thin material or too thick material or they have the demand of high speed of whole production line, a hydraulic uncoiler will be a better choice.

5Ton hydraulic decoiler with hydraulic mandrel expansion and electric coil unwinding is more convenient in operation than manual type decoiler. Equipped with the brake system, the decoiler itself can automatically adjust the unwinding speed to match the speed of whole line.

Suitable Coils Information

> Coil Material: galvanized steel coils, ppgi coils, stainless steel coils, etc

> Coil Width: max 1500mm

> Max Coil Weight: 5000kg

> Coil Inner Diameter: 508mm

> Max Coil Outer Diameter: 1350mm

Comparison Between 5Ton Hydraulic & Manual Decoiler

Competitive Advantages

> Machine base welded by H beam steel has great strength and stability

> Hold down arm is for easy unwinding the coil and avoid the coil exploding

> Support frame can be easily disassembled for coil loading

> Decoiler base can move in and out to facilitate the adjustment of the mandrel with the roll forming line

> All electric and hydraulic elements are selected from famous brands and comform to CE standard

> Control motion can be manual and automatic type according to clients' requirement

> Display language can be customized according to clients' demand such as French, Spanish, Portuguese, Lithuanian, etc.
