Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Fully Automatic Sheet Roll Forming Machine For Steel Floor Decking W Profile
Specifications
Brand Name :
BELIEVE INDUSTRY
Model Number :
BELI50-460
Certification :
CE
Place of Origin :
CHINA
Price :
USD 38000-45000 / set
Payment Terms :
T/T, L/C
Supply Ability :
20 sets per months
Delivery Time :
60 to 75 days
Packaging Details :
Main deck rollformer is fastened inside of the container by steel wire with nude packing, electric and hydraulic parts are wrapped with plastic film.
After-sales Service :
Enigineers available to service machinery overseas
Warranty :
18 months
Voltage :
380V, 3 phase, 50Hz
Type :
Cold rolling machine
Condition :
New
Description

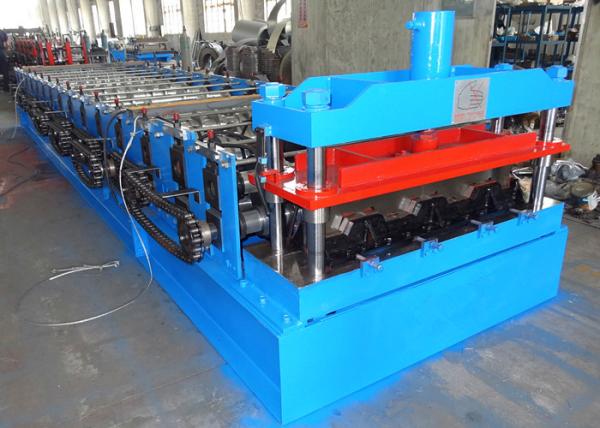

Steel Floor Decking Sheet Roll Forming Machine For W Profile 50-460

Description

This floor decking sheet machine is used to produce steel floor decks with 50mm depth and 460mm pitch distance. Main material can be run are galvanized steel coils with the thickness of 0.8mm to 1.2mm and raw material width of 1250mm.

Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.

Fully automatically controlled by PLC and operated by touch screen, users only need to input the production data such as production quantity and cutting length, then the machine will start to work accordingly.

Most Important Parameters Of Steel Decking Forming Line

Main Components No. Item Specifications
5Ton Manual Uncoiler 1. Mandrel Expanding Manually adjust the screw to accommodate coil inner diameter
2. Coil Unwinding Unpowered unwinding
3. Capacity 5000kgs; max 6000kgs
Steel Deck Rollformer 1. Roller Stations 26 stations based on deck profile and material
2. Forming Speed 15-20m/min
3. Main Power 11kw * 2
4. Drive Electrically driven via chain and sprocket
5. Shaft Material 40Cr, with heat treatment and chrome plated
6. Roller Material No.45 steel with quenching and tempering and chroming
Hydraulic Cutoff 1. Type Stop-cutoff, rest of the line stop running when cutting
2. Hydraulic Power 4kw
3. Balde Material Cr12 Mov, HRC58-62

Loading and Packing Details

  • One 40GP container is needed for loading whole steel deck rollforming line.
  • Main roll forming machine is nude packing and fastened inside of the container with steel wire
  • Electric control cabinet and hydraulic station are wrapped with plastic film and fastened inside of the container
