11KW Metal Roof Roll Forming Machine , Hydraulic Cutting Type Cold Roll Forming Equipment
11KW Metal Roof Roll Forming Machine , Hydraulic Cutting Type Cold Roll Forming Equipment
Specifications
Brand Name :
Beli
Model Number :
ROOF TILE ROLL FORMING MACHINE
Place of Origin :
Wuxi, China
MOQ :
1
Price :
USD 30,000 PER SET
Payment Terms :
T/T, L/C
Supply Ability :
20 sets/ Month
Delivery Time :
45 days
Packaging Details :
NUDE PACKAGING
Certification :
CE
Type :
Cold Roll Forming Machine
Condition :
New
Warranty :
18 Months
Voltage :
380V / 50Hz / 3Ph
After-sales Service :
Enigineers Available To Service Overseas
Description

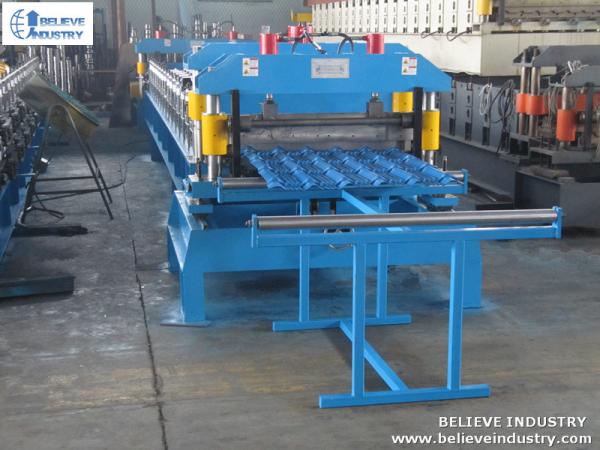

Metal Roof Tile Roll Forming Machine - YX25-200-1000

Description:

This Metal Roof Tile Roll Forming Machine can produce metal roof tiles. Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic punching device, hydraulic cutting device, collecting table, hydraulic station, etc.

Main Technical Parameters:

Roof Tile Sheet YX25-200-1000
1. Applicable Material Carbon Steel, Galvanized Steel, Q235
2. Material Thickness 0.3-0.8mm
3. Material Width Depend on specific profile
4. Diameter of Shaft 76mm
5. Material of Shaft Hydraulic quality 45# steel
6. Material of Rollers

45# steel Chromed treatment
7. Main Power 11KW
8. Forming Speed 3-8mm/min
9. Forming Station 18-24 stations
10. Cutting Type Hydraulic cutting
11. Material of Cutting Blade

Cr12 Mov
