Specifications
Brand Name :
BELIEVE INDUSTRY
Model Number :
BELI-C80-250
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Contact Us For Best Price
Payment Terms :
T/T, L/C
Supply Ability :
20 sets/ Month
Delivery Time :
45 days
Packaging Details :
Machine nude packing, electric system and hydraulic system coated with plastic film.
Other Name :
Cold Roll Forming Machine Line For 80-250mm C Purlin
Application :
For producing c purlins with variable web width from 80mm to 250mm
After-sale Service :
Engineers Available To Serve Machine Overseas
Machine Warranty :
24 months
Main Power :
15kw
Hydraulic Power :
11kw
Description

C80-250 C Purlin Roll Forming Machine Line With Automatic PLC Control System

Brief Description

This C shape purlin machine is designed to produce C purlins with the web width from 80-250mm and thickness of 1.5mm to 2.5mm. Users need to adjust the spacers between rollers for roll forming each purlin dimension.

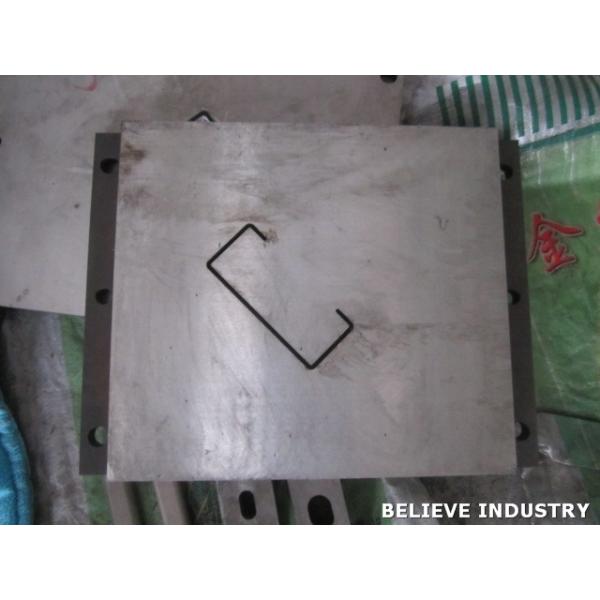

With hydraulically powered post-cutting device of this c purlin production line, users need to change cutting blades for each size. Believe Industry Company have developed a new cutting device with infinitely adjustment, with this new technology, only one cutting blade can meet all the cutting demands.

Machine Features

  • With PLC automatic control system
  • Electrically driven via 2.0" chain and sprocket
  • Levelling device for good flatness of material before punching and roll forming
  • Hydraulic punching unit placed before roll forming
  • With Turkey straightner for perfect straightness of c purlins

Main Componnets of C80-250 Purlin Machine

No. Item Quantity Options
1. 3Ton Manual Decoiler 1 set Automatic Decoiler
2. Feeding Guide 1 set Servo Feeder
3. 7-Roller Leveller 1 set Individual Leveller
4. Pre-punching Unit 1 set Individual Punching Device / High Speed Power Press
5. C Purlin Rollformer 1 set Gear Box Drive, Automatic Size Adjust Design
6. Hydraulic Cutoff 1 set Infinitely Adjustable Cutting Device
7. Receiving Tables 2 sets Auto Stacker


Main Technical Parameters

1. Applicable materials: galvanized steel coils, cold rolled steel coils

2. Material thickness: 1.5mm to 2.5mm

3. Roll forming stations: 13 stations

4. Roll forming speed: 10-15m/min

5. Main roll forming power: 15kw
6. Diameter of shafts: 70mm

7. Hydraulic power: 11kw for punching holes and cutting

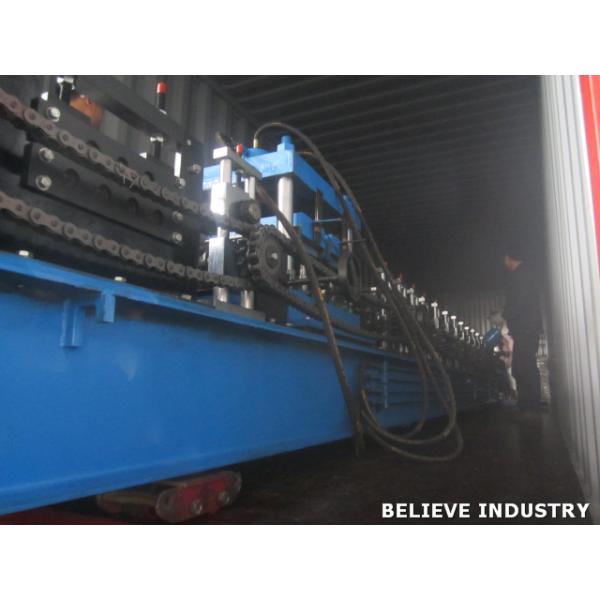

Packing And Delivery

C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System
C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System
C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System C80 - 250 C Purlin Roll Forming Machine With Automatic PLC Control System
