Quick Changeover Purlin Roll Forming Machine For 1.5-3.0mm Thick CM Profiles

Brief Introduction

This cold rollforming machine is used to produce C-shape and M-shape purlins with variable web width of 100mm to 350mm for steel building construction. Material can be roll formed are galvanised steel coils with the thickness of 1.5-3.0mm.

Main components of this machine are 3Ton single mandrel decoiler, 5-roller leveller, hydraulic punching unit, pre-cutting device, forming stations, product receiving tables and control system, etc.

Work process of CM purlin rollforming line: steel coil uploading--coil unwinding--entry feeding and deviation adjustment--material levelling--pre-punching--pre-cutting to required length--CM purlin roll forming--final product.

Machine Features

• Automatic size adjustment with one side of the roller stands electrically moving in and out through the linear guide rail.
• Hydraulically re-cutting design no need to change cutting blades for each purlin profile and dimensions.
• Whole line is controlled by PLC control system.
• Electrically driven via chain and sprocket.
• Strong machine structure with H beam steel welded machine base and cast iron roller stands.
• GCr15 roller material go through CNC machining, vacuum heat treatment for great strength.
• Covered with metal mesh for protecting the safety of both human and machine.

Most Important Technical Parameters

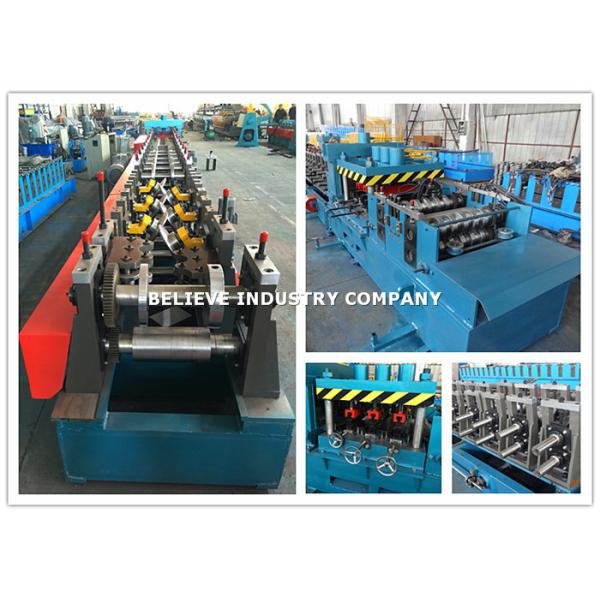

More Pictures Of CM Purlin Roll Forming Machine

Believe Industry Company has been engaged in cold roll forming machine industry for more than 20 years. We keep learning from advanced technology and improving our machine designing and manufacturing.

• Designing, Manufacturing, Marketing and After-sale service, one-stop metal forming machine solution.
• 20+ Year's Experience in cold roll forming industry
• COPRA, AUTOCAD, SOLIDWORKS assist in machine designing
• 50+ countries and regions our engineers have been to test machine.
