Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten
Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten
Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten
Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten
Specifications
Brand Name :
Beli
Certification :
CE
Place of Origin :
Wuxi, China
MOQ :
1
Price :
Contact Us For Best Price
Payment Terms :
T/T, L/C
Supply Ability :
20 sets/ Month
Delivery Time :
45 days
Packaging Details :
Main machine nude packing, electric and hydraulic system wrapped with plastic film
Condition :
New Machine
Warranty :
24 Months
After-sale Service :
Engineers Available To Serve Machine Overseas
Description

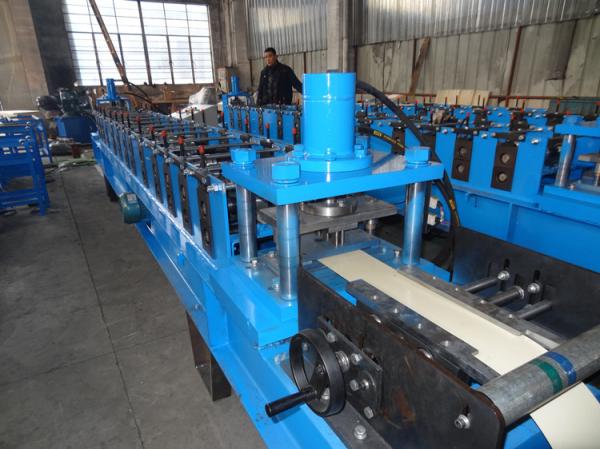

Interior Drywall Framing Furring Ceiling Roof Batten Roll Forming Machine

Brief Introduction Of Furring Ceiling Batten Roll Forming Machine

This roll forming machine is used to produce furring ceiling battens. This machine employs high grade steel panel structure and chain driving (transmission) system. Main process of this ceiling batten machine is decoiling, material feed guiding, punching holes and slots, roll forming and cutting.

Main Components

1. 3Ton Manual Decoiler 1 unit

2. Main Roll Forming Machine

 a. Feeding Guide

1 unit

b. Punching Device
c. Roll Forming Stations
d. Hydraulic Cutting Device
3. Product Support Tables 1 unit
4. PLC Control System 1 unit
5. Hydraulic System 1 unit

Main Technical Parameters

1. Applicable materials: galvanized steel coils, PPGI coils

2. Material thickness: 0.5-0.8mm

3. Roll forming stations: 13 stations

4. Roll forming speed: 0-15m/min

6. Diameter of shafts: 60mm

7. Material of rollers: high grade 45# steel with heat treatment and chrome plated

8. Main motor power: 5.5kw

9. Cutting power: 4kw

10. Material of cutting blade: Cr12 mold steel

More Machine Pictures

Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten

Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten

Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten Steel Roll Forming Machine For Interior Drywall Framing / Furring Ceiling / Roof Batten

Other Drywall Frame Series:

  • Drywall Stud Roll Forming Machine
  • Wall Track Roll Forming Machine
  • Corner Bead Roll Forming Machine
  • Angle Profile Roll Forming Machine
  • U Channel Roll Forming Machine
  • Z Furring Channel Forming Machine
  • J-Trim (J Channel) Roll Forming Machine
