Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
Specifications
Brand Name :
BELIEVE INDUSTRY
Certification :
CE
Place of Origin :
CHINA
Price :
USD 35000-55000 per set
Payment Terms :
30% TT as down payment, 70% TT before delivery
Supply Ability :
45 sets per quarter
Delivery Time :
60 to 90 days
Packaging Details :
Main machine part nude packing, electric and hydraulic parts covered with plastic film
Model Number :
BELI SERIES
Other Name :
Structural Metal Deck Rollforming Line For Composite Flooring System
Usage :
For producing composite corruagted metal floor decking sheet
Roller Material :
GCr15 bearing steel
Shafts :
40Cr solid shafts with 120mm diameter and heat treatment
After-sale Service :
Engineers Available To Serve Machine Overseas
Machine Warranty :
24 Months for normal use
Description

Corrugated Floor Decking Roll Forming Machine For 0.8-1.5mm Thick Material

Brief Description

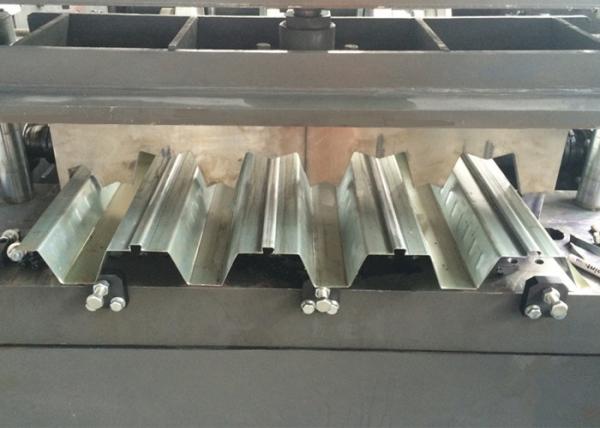

This roll forming machine is designed to produce steel decking sheets that bond with the concrete slad to develop a composite floor system. Main process of this production line is coil unwinding, material feeding and guiding, embossing strengthen ribs on the material, roll forming and cutting.

This floor deck machine is exported to Angola with economical model. We also have better machine design with 5Ton hydraulic uncoiler and drive by hydraulic motor for high machine speed and productivity.

Main Components

No. Components Whole Line Layout
1. 5Ton Manual Decoiler Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
2. Metal Deck Rollformer

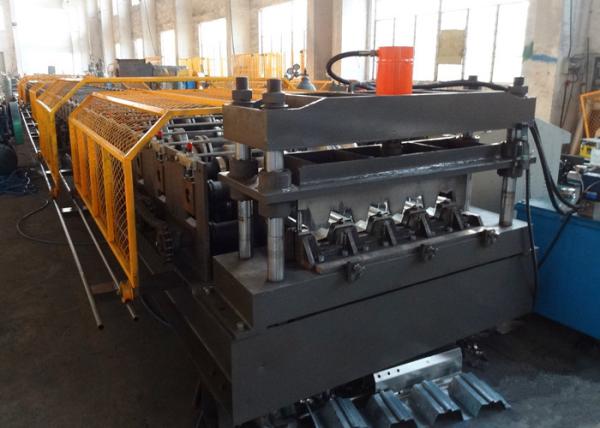

3. Hydraulic Cutoff
4. Product Support Frame
5. Electric Control Cabinet
6. Hydraulic Station

Main Machine Technical Parameters

No. Item Technical Specifications
1. Thickness of Material 0.8-1.5mm
2. Main Motor Power 30kw
3. Hydraulic Pressure 16Mpa
4. Control System PLC control panel
5. Shaft Material 40Cr, φ120mm or 110mm
6. Roller Material GCr15, Vacuum heat treatment
7. Forming Speed 15-20m/min
8. Cutting blade material Cr12Mov, HRC58-62°
9. Roller Stations 45 stations
10. Size of Machine (L*W*H) 15m*1.75m*1.5m

More Machine Pictures

Corrugated Floor Deck Roll Forming Machine , 0.8 - 1.5mm Thick Metal Roll Former
