Specifications
Brand Name :
BELIEVE INDUSTRY
Model Number :
BELI-DECOILER
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
30% TT in advance, 70% TT or LC after machine check and accept before shipment
Supply Ability :
45 sets per quarter
Delivery Time :
45 days
Packaging Details :
Wrapped with plastic film and fastened inside of the container.
Decoiler Capacity :
3000kgs
Decoiler Expansion :
Electrically Expansion
Decoiler Car Capacity :
3000kgs
Levelling Unit :
7-roller Levelling
Levelling Power :
3KW
Power Supply :
380V, 415V; 50Hz, 60Hz; 3Phase
Description

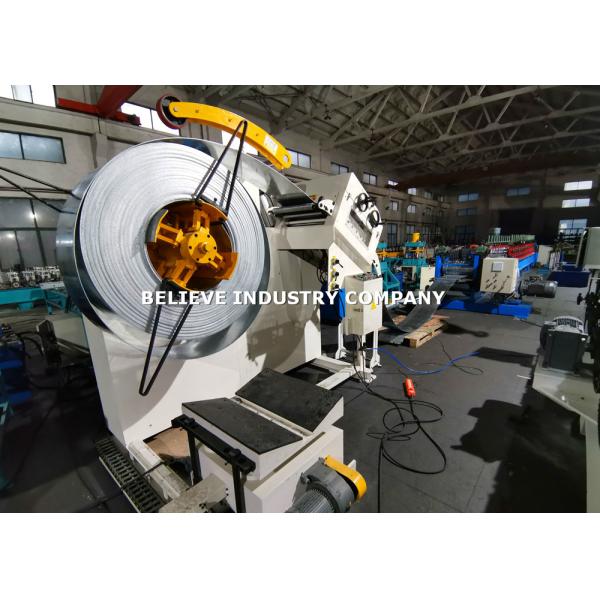

Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

Decoiler

  • Type: single mandrel type decoiler with press arm, brakes
  • Decoiler Loading Capacity: 3000kgs
  • Decoiler Mandrel Expansion And Tension: hydraulic decoiler inside expansion and tension
  • Coil Unwinding: no motor drive
  • Decoiler Mandrel Length: 500mm
  • Coil Inner Diameter: 508mm
  • Max Coil Outer Diameter: 1200mm

Coil Car

  • Function: easy to carry the coil to the decoiler
  • Type: steel welded structure with 4-wheel for horizontally moving, 2 cylinders for lifting up and down
  • Coil Car Surface: V-shape table for loading the coils, surface is layed with rubber to reduce material wear and tear
  • Coil Car Horizontal Moving: electrically moving in and out through the guide track
  • Loading Capacity: 3000kgs

Integrated Design Of Decoiler And Leveller, Applied To Automatic Roll Forming Machine

Integrated Decoiler And Leveller Applied To A Scaffold Plank Rollforming Line

Leveller

  • Type: 7 rollers for levelling the material; up layer 3 rollers and bottom layers 4 layers
  • Upper rollers and bottom rollers pressing: pneumatic pressing the material
  • Levelling Material Thickness: 0.3-3.2mm
  • Levelling Power: 3kw electrically levelling
  • Material Guiding: vertical rollers which can be adjusted according to material width

What is the advantage of this integrated decoiler and leveller?

A full metal roll forming line ususally consists of decoiler, levelling unit, punching unit, roll forming mill, cutting unit, exit receiving tables, etc. Some small lines such as stud and track machines is at least 10 meters long, while some lines such as rack and beam rollforming lines, cable tray production lines is more than 30 meters long. For customers who have limited factory space, Believe Industry Company optimizes the machine solution with integrated design of decoiler and leveller, loop pit, etc.

This integrated decoiler and leveller is applied to:

  • Steel Door Frame Rollforming Line
  • Storage Rack Upright Rollformer
  • Cable Tray Roll Forming Machine
  • Strut Channel Roll Forming Line
  • Scaffold Plank Production Line

For more information, please contact Believe Industry Company now.
