Specifications
Brand Name :
BELIEVE INDUSTRY COMPANY
Model Number :
BELI-ROOF
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Machine price will be according to customers' requirement
Payment Terms :
T/T, L/C
Supply Ability :
45 sets per quarter
Delivery Time :
45 to 60 days
Packaging Details :
Nude Packing And Fastened Inside Of The Shipping Container With Steel Wire
Machine Type :
Cold Roll Forming Machine
Function :
For producing metal tiles
Control System :
PLC control system
Drive System :
Electrically Motor Drive
Cutting System :
Hydraulically Powered Cutting
Roll Forming Speed :
10-15m/min
Whole Line Speed :
3-5m/min
Description

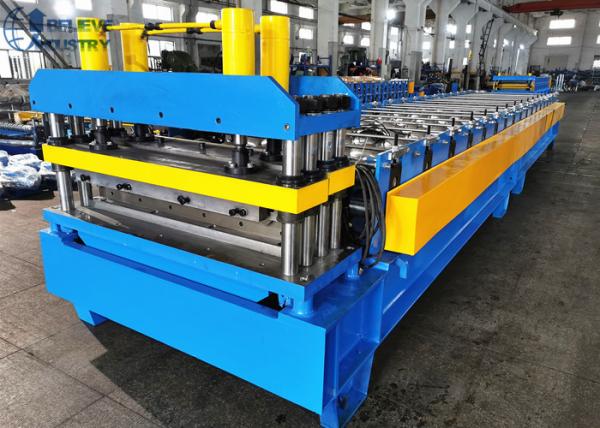

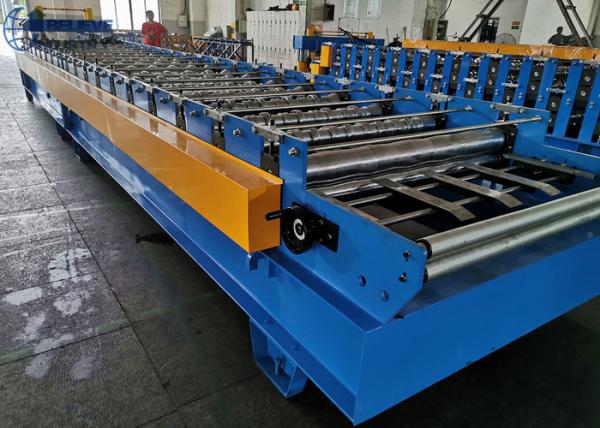

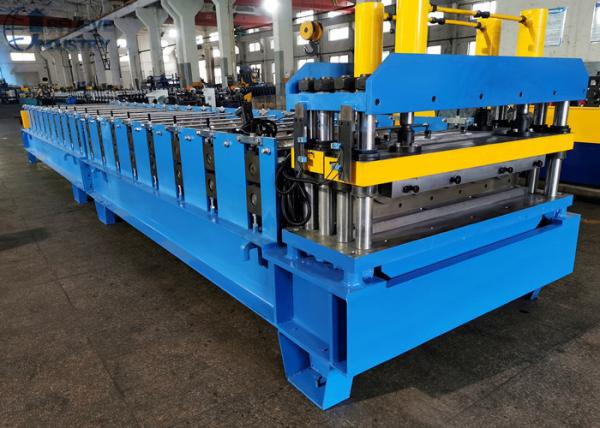

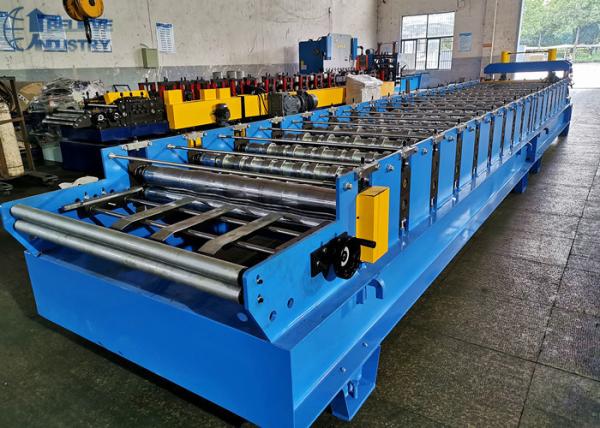

Metal Tile Roll Forming Machine

Metal tile is one type of metal roofing sheets with the traditional clay tile effect. Believe Industry Company designs and manufactures cold roll forming machines for various tile profiles.

Main Components of Whole Tile Rollforming Machine

1. Decoiler: mechanical type; electrical decoiler; hydraulic decoiler

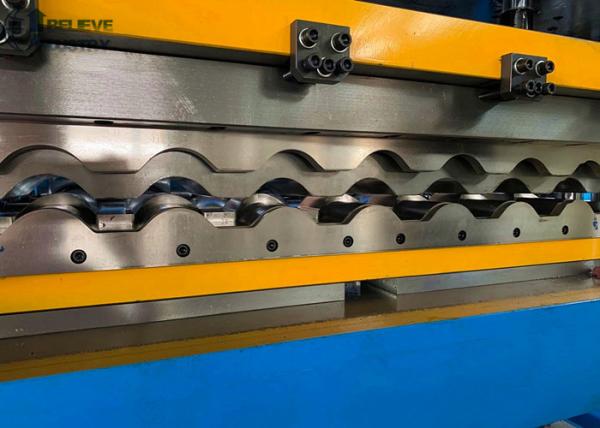

2. Main Roll Forming Machine: feeding guide, roll forming unit, hydraulic stamping and cutting unit

3. Runout Table: mechanical type; automatic stacker

4. Control Cabinet (famous brand electronic components)

5. Hydraulic Station: economic type; hydraulic station with accumulator and cooling fan

PPGI PPGL Color Coated Steel / Metal Tile Roll Forming Machine

Whole Roll Forming Line Layout

PPGI PPGL Color Coated Steel / Metal Tile Roll Forming Machine

Workflow: decoiling - feeding and guiding - roll forming - stamping tiles - cutting - stacking

Main Technical Parameters

1. Raw Material: color coated steel coils

2. Material thickness: 0.3-0.8mm

3. Roll forming steps: 17 forming steps/ 17 roller stations

4. Roll forming speed: 12-15m/min not including stamping and cutting

5. Whole line speed: 3-5m/min including stamping and cutting, if you need high speed machine, please contact us for more information

6. Control System: automatic PLC control system

7. Drive system: 5.5kw, electrically motor drive

8. Stamping and cutting: 7.5kw, hydraulically powered stamping and cutting

If you need more machine information, please contact us directly.
