CNC Precision Circular Saw Machine for Composite Plate Copper Plate Sawing

Description

The worktable panel of the sawing equipment adopts a patented design and special processing technology, which can effectively protect the cutting product and avoid scratching the surface of the material when feeding forward and backward;
The equipment cutting tail material is controlled at the shortest 80mm, which greatly controls the waste of tail material;
It adopts dust collection and cooperates with a fully enclosed protective cover to better collect aluminum chips, which is convenient for 5S management and effectively reduces sawing noise by more than 20 decibels. It is a low-noise aluminum profile sawing machine;
The spindle accuracy is within 0.005mm, the workpiece cutting accuracy is stably controlled within ±0.1mm, and the ultra-thin saw blade is adapted to save materials;
Imported square ball linear guides are used for feeding and feeding to ensure the stability of sawing processing;
Equipment motors are installed with overheating and overload protection devices to prevent accidental damage to the motor.

Mainly suitable for cutting materials
Processing of various aluminum profiles, aluminum tubes, aluminum rods, door and window corner codes, photovoltaic corner codes, aluminum castings, copper parts, PVC and other materials

• The control interface of the automatic circular sawing machine adopts the operating system developed by HMI technology based on PLC, which is usually equipped with a touch screen and an operation panel. Using the man-machine interface, as long as the operator inputs the parameters such as the specification and size of the material, the processing quantity, etc., the system will automatically adjust the complex parameters such as the speed of the saw blade, the amount of feed per tooth (cutting speed) and other complex parameters according to the input parameters. In order to provide the operator with a simple operation method.
• This type of circular saw has high safety and generally works in a fully enclosed state. It can automatically stop and alarm when there is a fault, which can avoid casualties and equipment loss, and at the same time, the processing efficiency is very high.
• The machinery framework is in the heavy- -duty structure so that equipment enjoys stable operation.
• The sawing foundation is in the lateral suspension structure; the g lide device is arranged with double- -row roller type straight slide rail.
• In the travelling of sawing foundation, the grinding gear, rack and servo motor are arranged to guaranteethe compatibility of sawing speed.
• The pressing materials hood is in the overall design so that materials do not slide in the sawing.The sucking pipe is reserved; large power dust collector is arranged.
• Except for the fioating rollers, all other contents on the working platform are made of chromium-platedsteel plate in order to avoid scratch of materials.
• The suspended feeding clamp claw features as air pressure driving and clamping.
• The driver of feeding mechanism is in the structure of servo motor + gear andrack.
• The sawing foundation is elevated by hydraulic power; the ascending heightof sawingblade is setupaccording to the plate thickness.

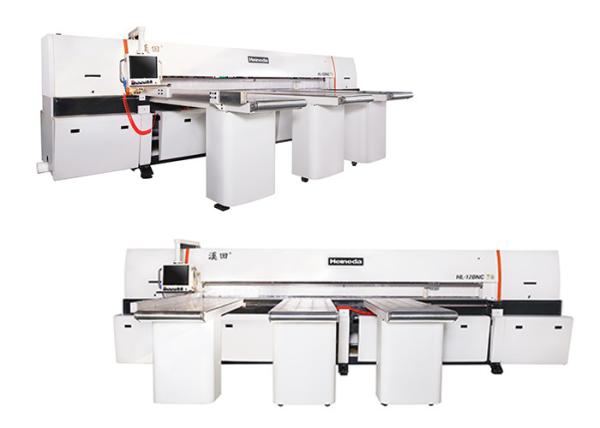

Model: HL-12BNC computer aluminum plate sawing machine

▲ HL represents the model of Aluminum plate sawing machine in Heineda.

▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawed 3800 mm.

▲ BNC represents this aluminum plate sawing machine for fully automatic model.

Company Profile
Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.

Obtained a number of patent certificates

Technical specifications and parameters

Mechanical characteristics

▲ Touch-style operation screen:

1. Touch 10 inch operation screen.

2. Alternatively, multiple sets of workbenches can be set, which is convenient for handover.

3. Guide input function.

4. Fault self-detection function.

▲ Work clip seat:

1. The two-side bed rail of the work clamp is composed of welding steel beam, and the gear and the raft drive are plated with a gear and a tooth row drive while plating a hard chrome rail and the other side, and the magnetic ruler reaches a precise degree in double ratio. With reduction and 2 kW daily servo motor precision and fast drive positioning, the maximum speed reaches 6 meters per minute.

▲ Pressure beam structure:

1. Adopt integral pressure beam structure, gear strip and cylinder matching, uniformly drive the rolling beam, and the pressure is uniformly distributed on both sides of the cut center line, and the strip is installed in the bottom of the pressure beam to avoid the press, press The surface of the damaged work, ensuring precision cutting quality.

▲ saw:

1. Adopt the upper and lower parallel linear slide rails, effectively reduce the interlocking of the sawing movement, enhance the smoothness of the huge movement, and effectively reduce the shift shaking of the movement to achieve the best cut line accuracy.

2. Main saw motor 20HP (15 kW), the giant scooter uses a 2HP (1.5 kW) variable frequency motor with the speed reducer and precision gear tooth row drive, the main saw with the oil cylinder, so the saw is more powerful, avoiding the traditional chain drive The truck saw, squeezing, etc. generated.

3. Sawing Cutting Positioning can start cropping from the program width editing settings.

4. A square tank joint is disposed under the sawing, and there are two sides of film to cover each other, extend to the end of the cut, to ensure the dust tank reaches the highest dust collective effect.

5. The sawing stroke cuts up to 6 meters per minute, and the back reaches 7 meters per minute, and the height of the work is not adjusted by the panel knob, and the cutting speed can be changed at the time of cutting. Users can adjust their preference requirements different from their own nature.

▲ Main Table:

The main worksheet is also a floating table. The copper air drum is disposed on the panel of colloidal chrome plating. When the durability is enhanced, the work efficiency of the workers are also improved.

▲ Crossing claws:

1. Number of work clips standard configuration: 12 support clips.

2. Each jam is equipped with a cylinder with a lever method, and when it is pulled the working object, it is possible to ensure that the work material does clamp the sheet.

▲ dustproof

Segmental dustproof pieces use transparent plastic sheets that can effectively inhibit dust discharge and can achieve safety protection.

▲ Electronic control box configuration:

1. All electronic parts are purchased in Taiwan.

2. The servo motor and servo drive are Japanese Panasonic.

3. The inverter is Taiwan's English Waritatten.

4. Electronic parts do not need cooling system at all, for popular electronic parts, can purchase replacement on the market without worrying about dust invasion, as long as it is regularly cleaned.

▲ Power supply:

1. The power supply is a three-phase supply for industrial, with a voltage of 380V / 50Hz.

▲ air pressure supply:

1.Use air pressure to 5 ~ 6 kg / cm

▲ dusty:

1. The supplier provides a scraper tandem system and is simultaneously installed in place with the sawing machine to ensure the chips.

2. ▲ Standard equipment:

1. Solden saw blade: carbide saw blade (aluminum plate special).

2. Workclip: 12.

3. Floating feedstock: 1520mm x 500mm x 3.

4. Toolbox contains a tool 1 group.

5. The main saw motor is arranged in the machine.

Occupying the floor

Main features of the equipment

•The sawing foundation is in the lateral suspension structure; the guide device is arranged with double—row roller type straight slide rail.
•In the travelling of sawing foundation, the grinding gear, rack and servo motor are arranged to guarantee the compatibility of sawing speed.

Product advantages

1. High degree of automation, only need to input the sawing size into the system to complete the sawing.

2. The sawing precision is high, and the length and size can reach ±0.1mm.

3. The sawing surface is large, which can cut 400mm wide and 150mm high.

4. Sawing, one worker can operate more than 2 sets of equipment, and can cut 24 hours without interruption.

FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
