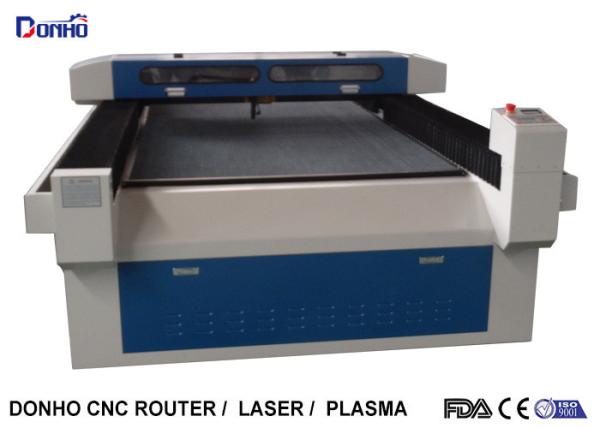

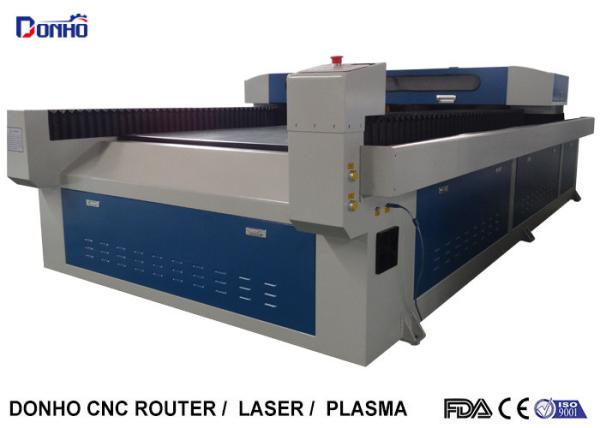

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
Specifications
Brand Name :
Donho
Model Number :
DHCL-1325
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 Sets Per Month
Delivery Time :
2 Weeks After Balance
Packaging Details :
1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt.
Alias :
co2 laser engraving machine
Working Size :
1300 mm * 2500 mm
Working environment :
0-45°C
Operating Humidity :
5-95%
Graphic Format Supported: :
AI, BMP, DST, DWG, DXF, DXP etc
Package :
3800mm*2200mm*1500mm
Description

DHCL-1325 150W-180W RECI co2 laser tube Laser Engraving Equipment With Nest Table


This type co2 laser engraving equipment adopts nest table for cutting leather, fribic etc. We could also offer you blade table for large weight materials.

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

Model DHCL-1325
Laser Power 150W -180W RECI laser tube
Working Area 1300mm * 2500mm
Motor and Driver Leadshine stepper motor and driver
Rails PMI square rail
Control System Ruida Control system
Lens and Mirrors Singapore Wavelength lens and mirrors
Transmission Belt transmission
Table Type Nest table
Cooling System Water chiller CW 5200
Others USB offline, Red point, Industrial, Air pump ACO-009 etc

Features

1. Reci laser tube, has good engraving performance, can use 4mA current in the high-frequency pulse engraving of the laser tube in pre-ionization state;

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

2. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high transmittance, stable performance;

3. The RuiDa control system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and antistatic interference. Can preview the file graphics saved in the memory on the panel, the speed of the screen, the domestic manufacturers no one can;

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

4. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor made by Raytheon Smart with the latest Japanese design, the latest technology and imported core materials; CM series waterproof stepping motor, compared with the standard type, the rear end cover is redesigned, the lead wire is changed to waterproof connector, a new sealing material is added between the front and rear end caps and the fuselage, and the motor body is comprehensive. Standard stepping motor, CM series is also equipped with double output shaft type, with brake type, waterproof type and other categories, which can be selected according to different applications;

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

5. Red Point

The red spot positioning lamp adopts imported laser diode and optical lens. Clear spot, low divergence, good collimation, small size, strong industrial applicability;

6. Inner part with optimized heat dissipation effect, rationalized placement of the electronic parts, Ensured system stability and anti jamming capability;
Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

7.The Fulong belt belt is made of high quality synthetic neoprene imported from Japan and is equipped with rubber accessories for various purposes. The skeleton material is made of high quality glass fiber rope imported from Japan; the toothed surface is protected by nylon 66 high elastic cloth. The product has good dynamic performance and crack resistance, excellent ozone performance, and also has the characteristics of aging resistance, heat resistance and wear resistance.The timing belt adopts toothed and toothed teeth to transmit power, which is a new type of synchronous transmission. Moreover, the product does not require lubrication, no slip, no pollution, less noise; transmission efficiency of more than 98%, speed ratio range of up to 1:10, allowable line speed of up to 50m / s, transmission rate from several hundred watts to several One hundred kilowatts, also suitable for multi-axis transmission;

8. Cooling machine adopted Industrial water chiller CW-3000, install easier and could make sure better cooling system to extended working hours;

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

9.The nest table is made by alunium, fit for cutting soft materials, like paper, leather, cloth etc. Nest table could increase friction so that the material is fixed on the table instead of using a fixture;

10. Non-metal laser head, More in line with the latest design of mechanical engineering, greatly improve the laser conversion rate, fast carving speed, safe and durable, easy to operate;

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

11. Welded machine body

adopts thermal quenching technology to remove stress and uses a large precision gantry milling machine to ensure accuracy.

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W

Leather / Fabric Co2 Laser Engraving Equipment With Nest Table 150W-180W
