Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
Specifications
Brand Name :
Donho
Model Number :
DHCL-1610
Certification :
CE, ISO
Place of Origin :
Shandong China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 Sets Per Month
Delivery Time :
2 Weeks After Balance
Packaging Details :
1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt.
Alias :
co2 laser engraver
Working Size :
600 mm * 400 mm
Support Graphics :
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Positon accuracy :
0.01mm
Warranty :
12 months
Description

Mini Nest Table Laser Laser Engraving Machine With USD Off-line For Wood Photo Printing

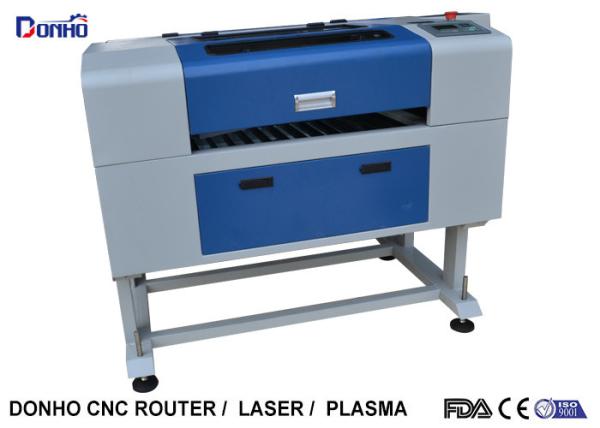

This type mini co2 laser engraving machine adopts nest table mainly for cutting soft-materials like cloth, leather, paper etc. It's could also cutting acrylic etc hard materials.

Model DHCL-1610
Laser Power 80W -90W RECI laser tube
Working Area 1600mm * 1000mm
Control System Ruida Control system
Motor and Driver Leadshine stepper motor and driver
Lens and Mirrors Singapore Wavelength lens and mirrors
Rails PMI square rail
Table Type Nest table
Transmission Belt transmission
Cooling System Water chiller CW 5200
Others USB offline, Red point, Industrial, Air pump ACO-009 etc

Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic CuttingFeatures

1. Reci laser tube, has good engraving performance, can use 4mA current in the high-frequency pulse engraving of the laser tube in pre-ionization state;

2. Welded machine body

adopts thermal quenching technology to remove stress and uses a large precision gantry milling machine to ensure accuracy;

Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting

3. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high transmittance, stable performance;

4.RD Control system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. The controller includes more complete and better motion control functions, large-capacity file storage, more compatible dual independent adjustable laser power control interface, more compatible U disk driver, multi-channel universal / dedicated IO Control, communication with PC supports Ethernet communication and USB communication automatically;

Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting

5. The nest table is made by alunium, fit for cutting soft materials, like paper, leather, cloth etc. Nest table could increase friction so that the material is fixed on the table instead of using a fixture;

6. Inner part with optimized heat dissipation effect, rationalized placement of the electronic parts, Ensured system stability and anti jamming capability;

Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting

7.Non-metal laser head, More in line with the latest design of mechanical engineering, greatly improve the laser conversion rate, fast carving speed, safe and durable, easy to operate;

8. Cooling machine adopted Industrial water chiller CW-3000, install easier and could make sure better cooling system to extended working hours;

9. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor made by Raytheon Smart with the latest Japanese design, the latest technology and imported core materials;

10.Red Point

The red spot positioning lamp adopts imported laser diode and optical lens. Clear spot, low divergence, good collimation, small size, strong industrial applicability.

Industrial Laser Engraving Machine For Cloth / Leather / Paper / Acrylic Cutting
