201,304,316 grade PVC coated universal type stainless steel cable ties
201,304,316 grade PVC coated universal type stainless steel cable ties
Specifications
Place of Origin :
China
Brand Name :
NO
Certification :
RoHs
Model Number :
201,304,316 grade PVC coated universal type stainless steel cable tie
MOQ :
10000pcs
Price :
enquiry for latest price
Packaging Details :
100pcs/bag
Delivery Time :
10-15days
Payment Terms :
T/T
Supply Ability :
100000pcs
Type :
universal type
Material :
Steel
Description

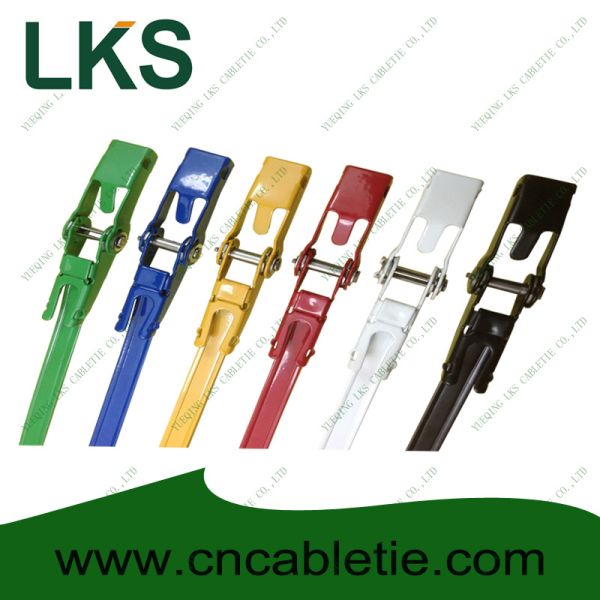

201,304,316 grade PVC coated universal type stainless steel cable ties

201,304,316 grade PVC coated universal type stainless steel cable tie

201,304,316 grade PVC coated universal type stainless steel cable ties

1. Material: 201/304 stainless steel

2. Width: 10mm(other width can be made under requirements)

3. Thickness: 0.2mm

4. Usage: for binding communication cables, labels, boats, mining industry, advertisement, industry etc.

5. Surface Treatment: spray (spread with plastics or plastic-coating)

6. Specifications:

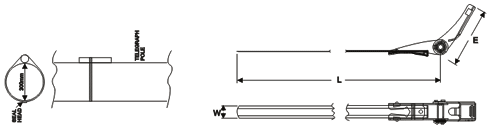

Model No.

Width(mm)

Length(mm)

Thickness(mm)

Max. Bundle Dia.

Inch

mm

Inch

mm

Inch

mm

Inch

mm

LKS-400

0.4

10

15.7

400

0.008

0.2

4.3

110

LKS-500

19.7

500

5.4

138

LKS-600

23.6

600

7.1

180

LKS-700

27.6

700

8.3

210

LKS-800

31.5

800

9.4

240

LKS-900

35.4

900

10.6

270

LKS-1000

39.4

1000

11.8

300

LKS-1100

43.3

1100

13.4

340

LKS-1200

47.2

1200

14.6

370

LKS-1300

51.2

1300

15.7

400

LKS-1400

55.1

1400

16.9

430

LKS-1500

59

1500

18.1

460

LKS-2000

78.7

2000

23.6

600

LKS-3000

118.1

3000

36.2

920

LKS-4000

157.5

4000

47.2

1200

LKS-5000

196.9

5000

59

1500

Universal Stainless Steel Cable Tie Operating Manual

201,304,316 grade PVC coated universal type stainless steel cable ties

Parts Name
①Plum blossom Washer ⑤Small bracket
②Round Washer ⑥Stainless steel band
③Shaft Attention:
④Big bracket Please wear gloves when operating

Step 1:Insert the end of ⑥ stainless steel band into the slot of ③spindle.

201,304,316 grade PVC coated universal type stainless steel cable ties

Step 2:Hold ⑤bracket by left hand,tighten up the ⑥steel band by right hand.

201,304,316 grade PVC coated universal type stainless steel cable ties

Step 3:Hold the ⑤small bracket by left hand,pushing the ④big bracket back and forth,until the steel band strapped tightly.

201,304,316 grade PVC coated universal type stainless steel cable ties

Step 4:After strapped tightly,hold the steel buckle by left hand,take hammer by right hand,hammering the ④small bracket and ⑤big bracket down.

201,304,316 grade PVC coated universal type stainless steel cable ties

Step5:At the end, remove the rest ⑥steel band by scissors.

201,304,316 grade PVC coated universal type stainless steel cable ties

201,304,316 grade PVC coated universal type stainless steel cable ties
