Tungsten Carbide Grooving Inserts MGMN250-G for Stainless Steel Parts

Application: suitable for grooving and parting stainless steel especially austenitic stainless steel, also suitable for turning steel and cast iron workpieces at low speeds.

Features: Ultrafine carbide substrate combining with Balzers premium coating gives excellent roughness and heat resistance which providing effective protection for cutting edge.

Inserts have low chemical affinity.

Inserts are offered with two sharp edges, for better economical machining.

Optimal chipbreaker structure can well control chipflow and curling.

Excellent surface quality of workpiece.

Chip Breaker Features of Carbide Grooving Inserts MGMNXXX-G Series :

1. Specially designed chip breaker allows narrower chips to promote better chip flow.

2. Specially designed for grooving applications.

Types of Tungsten Carbide Grooving Inserts MGMN-G Series

MGMN150-G KH525 MGMN200-G KH525 MGMN250-G KH525

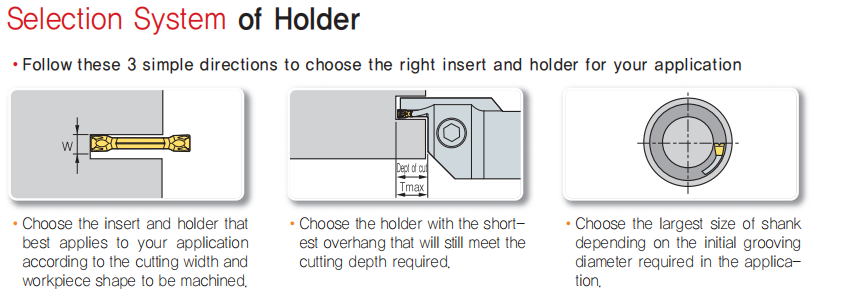

Selection of Grooving and Parting Carbide Insert

.To properly match the insert and cutting condition, the following factors should be considered

..... Width of insert

..... Chip breaker

......Grade and nose R

.The relationship between the cutting width and cutting depth

.......Neutral type, inserts with a 0 degree lead angle are best when used applications maximum depth of cut.

.......In general alloy steel, the maximum depth of cut= W *0.8

.Insert with lead angle

........To reduce burrs, we recommend using insert with a lead angle. The Insert that has larger lead angles reduces burrs but

will also decrease tool life.In the case where burrs are acceptable, we recommend using a neutral type insert.

Products are not listed one by one.

For other models, please contact us. We will give you a detailed answer.
