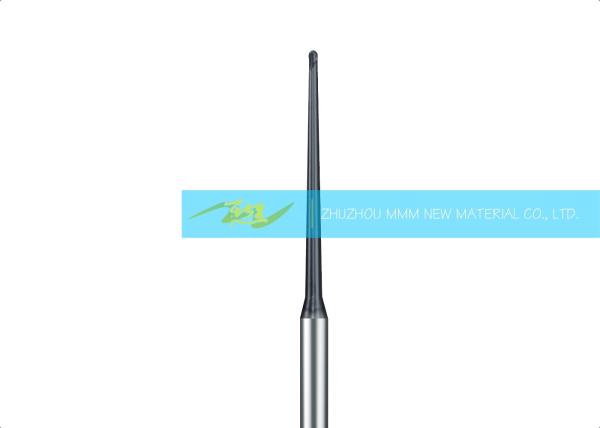

High Strength Solid Carbide End Mill Bit For Deep Groove Milling
High Strength Solid Carbide End Mill Bit For Deep Groove Milling
High Strength Solid Carbide End Mill Bit For Deep Groove Milling
High Strength Solid Carbide End Mill Bit For Deep Groove Milling
Specifications
Brand Name :
MMM
Model Number :
Various
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
100,000 PCS/Month
Delivery Time :
5-10 Days
Packaging Details :
Internal Plastic Box
Application :
Deep Groove Milling
Material :
Solid Carbide
Coating :
PVD
Processing Material :
General Material
Description

Solid Carbide End Mills for Deep Groove Milling with High Strength

Base Material & Coating:

  • Nano-grade coating for excellent wear resistance and high temperature stability.
  • Ultra-fine particle cemented carbide substrate with excellent wear resistance.
  • Advanced coating post-treatment technology combines with the substrate more tightly, with lower friction and better surface quality.

Feature Advantage:

  • It includes various series of small diameter mills such as flat head, ball head, arc, neck, deep groove, 2 edge, 3 edge and 4 edge.
  • The minimum diameter is .
  • The small size of the parts, the processing of deep grooves, etc.
  • The integral alloy end mill can be reground and has the characteristics of repair and reuse, further reducing costs.
  • Excellent dry cutting performance, whether dry or wet.

Chip-Breaker, Structure & Edge Treatment:

  • Highly rigid tool structure design reduces tool vibration.
  • The production of high-precision five-axis CNC grinding machines guarantees the size, precision and surface quality of the tools.

Type (Part of the type):

Type

Handle Diameter

(mm)

Total Length

(mm)

Description
AL-2B-R1.0 6 60 2 Edges, Ballnose
AL-2B-R1.5 6 60 2 Edges, Ballnose
AL-2B-R2.0 6 60 2 Edges, Ballnose
AL-2B-R2.5 6 60 2 Edges, Ballnose
AL-3E-D1.0 4 50 3 Edges, Flat End Mill
AL-3E-D1.5 4 50 3 Edges, Flat End Mill
AL-3E-D2.0 4 50 3 Edges, Flat End Mill
AL-3E-D2.5 4 50 3 Edges, Flat End Mill
GM-2B-R0.5 6 50 2 Edges, Ballnose
GM-2B-R0.5S 4 50 2 Edges, Ballnose
GM-2B-R0.75 6 50 2 Edges, Ballnose
GM-2B-R0.75S 4 50 2 Edges, Ballnose
GM-2B-R1.0 6 50 2 Edges, Ballnose
GM-2B-R1.0S 4 50 2 Edges, Ballnose
GM-2B-R1.25 6 50 2 Edges, Ballnose
GM-2B-R1.25S 4 50 2 Edges, Ballnose
GM-2B-R1.5 6 50 2 Edges, Ballnose
GM-2B-R1.5S 4 50 2 Edges, Ballnose
GM-2B-R1.75 6 50 2 Edges, Ballnose
GM-2B-R10.0 20 100 2 Edges, Ballnose
GM-2B-R2.0 6 50 2 Edges, Ballnose
GM-2B-R2.5 6 50 2 Edges, Ballnose
GM-2B-R2.75 6 50 2 Edges, Ballnose
GM-2B-R2.S 4 50 2 Edges, Ballnose
GM-2E-D1.0 6 50 2 Edges, Flat End Mill
GM-2E-D1.0S 4 50 2 Edges, Flat End Mill
GM-2E-D1.5 6 50 2 Edges, Flat End Mill
GM-2E-D1.5S 4 50 2 Edges, Flat End Mill
GM-2E-D2.0 6 50 2 Edges, Flat End Mill
GM-2E-D2.0S 4 50 2 Edges, Flat End Mill
GM-2E-D2.5 6 50 2 Edges, Flat End Mill
GM-4B-R1.5 6 50 4 Edges, Ballnose
GM-4B-R2.0 6 50 4 Edges, Ballnose
GM-4B-R2.5 6 50 4 Edges, Ballnose
PM-2E-D1.0 6 50 2 Edges, Flat End Mill
PM-2E-D1.0S 4 50 2 Edges, Flat End Mill
PM-2E-D1.5 6 50 2 Edges, Flat End Mill
PM-2E-D1.5S 4 50 2 Edges, Flat End Mill
PM-2E-D2.0 6 50 2 Edges, Flat End Mill
PM-2E-D2.0S 4 50 2 Edges, Flat End Mill
PM-2E-D2.5 6 50 2 Edges, Flat End Mill
PM-4B-R1.5 6 50 4 Edges, Ballnose
PM-4B-R2.0 6 50 4 Edges, Ballnose
PM-4B-R2.5 6 50 4 Edges, Ballnose

High Strength Solid Carbide End Mill Bit For Deep Groove Milling
