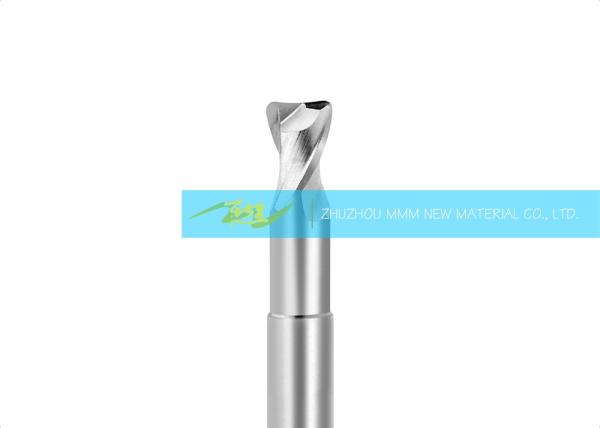

Face Milling Tungsten Carbide End Mill For ISO N Copper Two Flute End Mill
Face Milling Tungsten Carbide End Mill For ISO N Copper Two Flute End Mill
Face Milling Tungsten Carbide End Mill For ISO N Copper Two Flute End Mill
Face Milling Tungsten Carbide End Mill For ISO N Copper Two Flute End Mill
Specifications
Brand Name :
MMM
Model Number :
Various
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
100,000 PCS/Month
Delivery Time :
5-10 Days
Packaging Details :
Internal Plastic Box
Application :
Face Milling
Material :
Solid Carbide
Coating :
PVD
Processing Material :
Copper
Description

Solid Carbide End Mills for ISO N Copper with Good Lubrication

  • Extraordinary sharpness, most suitable for high precision machining of copper and copper alloys.

Feature Advantage:

  • Particularly suitable for processing thin-walled workpieces.
  • The unique geometry allows for maximum metal removal rates.
  • The integral alloy end mill is suitable for face milling, groove milling and side milling with high efficiency advantages.
  • The integral alloy end mill can be reground and has the characteristics of repair and reuse, further reducing costs.

Base Material & Coating:

  • The use of a CrN coating with good lubricity and very low coefficient of friction enables a light cutting process, long tool life and high quality machined surfaces.
  • Advanced coating post-treatment technology combines with the substrate more tightly, with lower friction and better surface quality.
  • Ideal coating, excellent wear resistance, oxidation resistance, thermal stability and lubrication.

Chip-Breaker, Structure & Edge Treatment:

  • The unique geometry allows for maximum metal removal rates.
  • The groove type is tightly controlled to better improve chip flow and curl and reduce cutting forces.
  • The production of high-precision five-axis CNC grinding machines guarantees the size, precision and surface quality of the tools.
  • Highly stable edge treatment and high rigidity design allow the tool to achieve greater feed per tooth, greatly improving metal removal and processing efficiency.

Type (Part of the type):

Type

Handle Diameter

(mm)

Total Length

(mm)

Description
NM-2B-R0.5 4 50 2 Edges, Ballnose
NM-2B-R0.75 4 50 2 Edges, Ballnose
NM-2B-R1.0 4 50 2 Edges, Ballnose
NM-2B-R1.25 4 50 2 Edges, Ballnose
NM-2B-R1.5 6 50 2 Edges, Ballnose
NM-2B-R1.75 6 50 2 Edges, Ballnose
NM-2B-R2.0 6 50 2 Edges, Ballnose
NM-2B-R2.5 6 60 2 Edges, Ballnose
NM-2B-R3.0 6 50 2 Edges, Ballnose
NM-2B-R4.0 8 60 2 Edges, Ballnose
NM-2B-R5.0 10 75 2 Edges, Ballnose
NM-2B-R6.0 12 75 2 Edges, Ballnose
NM-2E-D1.0 4 50 2 Edges, Flat End Mill
NM-2E-D10.0 10 75 2 Edges, Flat End Mill
NM-2E-D12.0 12 100 2 Edges, Flat End Mill
NM-2E-D2.0 4 50 2 Edges, Flat End Mill
NM-2E-D3.0 6 60 2 Edges, Flat End Mill
NM-2E-D4.0 6 60 2 Edges, Flat End Mill
NM-2E-D5.0 6 60 2 Edges, Flat End Mill
NM-2E-D6.0 6 60 2 Edges, Flat End Mill
NM-2E-D8.0 8 75 2 Edges, Flat End Mill
NM-4E-D10.0 10 75 4 Edges, Flat End Mill
NM-4E-D12.0 12 100 4 Edges, Flat End Mill
NM-4E-D3.0 6 50 4 Edges, Flat End Mill
NM-4E-D4.0 6 50 4 Edges, Flat End Mill
NM-4E-D5.0 6 60 4 Edges, Flat End Mill
NM-4E-D6.O 6 60 4 Edges, Flat End Mill
NM-4E-D8.0 8 75 4 Edges, Flat End Mill
