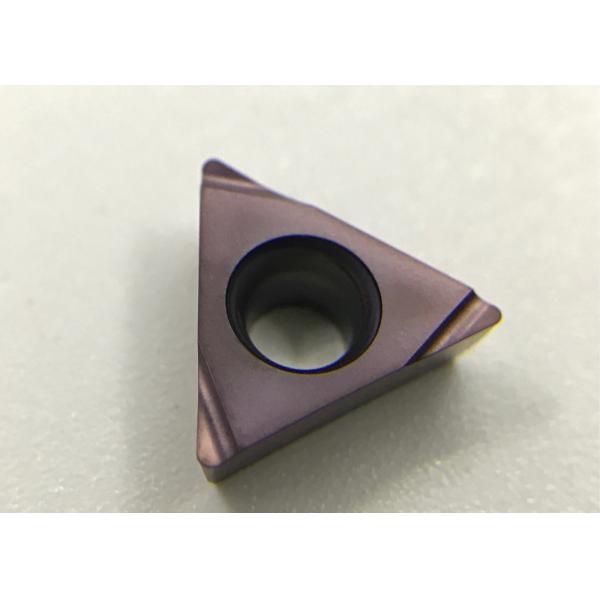

TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard
Specifications
Brand Name :
MMM
Model Number :
TPGH090204L
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000 PCS/Month
Delivery Time :
5-15 Days
Packaging Details :
Internal Plastic Box Packaging
Material :
Cemented Carbide
Coating :
PVD Nano-Coating
Processing Material :
ISO M\P\K
Application :
Finishing Turning
Standard :
ISO
Grade :
MP1215
Type :
TPGH110304L
Chipbreaker :
G-Level Accuracy, Sharp, Cutting Brisk
Description

CNC Carbide Inserts TPGH090204L For Internal Hole Finishing Boring

Application:

  • ISO M Materials, Semi-Finishing Turning of All Types of Stainless Steel.

TPGH090204L CNC Carbide Inserts , Carbide Tool Inserts With ISO Standard

Feature Advantage:

  • Through a large number of customer application verification, the performance and life of stainless steel series turning inserts reach the level of mainstream brands in Japan, South Korea and Europe.
  • The price has obvious advantages over Japan, South Korea and mainstream European and American brands.

  • Grades:
    • Coating stress relief treatment, effectively improve tool life, improve stability, and make tool life predictable.

Grade

Coating

Performance

Equivalent

Grade

MP1215

 PVD TiAlN Nano-Coating
  • ​Better versatility
  • Good high temperature resistance
  • Suitable for occasions where the rigidity is relatively poor

GC1030

GC2030

VP15TF

TT9030

  • Fast cutting and good control of iron filings for excellent surface quality.
  • Precision polishing edge improves the toughness of the cutting edge, reduces the cutting force, reduces the sticking phenomenon, and significantly improves the stability of the insert.
  • Strengthened the impact resistance of the cutting edge on the basis of sharp edge, suitable for semi-finishing and intermittent processing of various stainless steels.
  • Suitable for semi-finishing of stainless steel with a depth of cut of 1-3 mm.
  • Chipbreaker designed for stainless steel's highly viscous, highly plastic, difficult-to-machine materials.

Recommended Cutting Parameters:

MP1215 MP1315
Feed (mm/rev)
0.1-0.4 0.1-0.4
ISO Material Hardness (HB) Speed (m/min)
M Ferritic stainless steel 180 290-190 300-190
M Austenitic stainless steel 260 240-160 250-160
M Martensitic stainless steel 330 250-170 260-170
