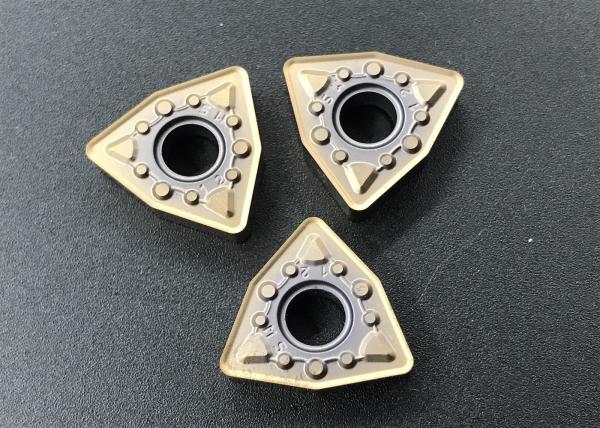

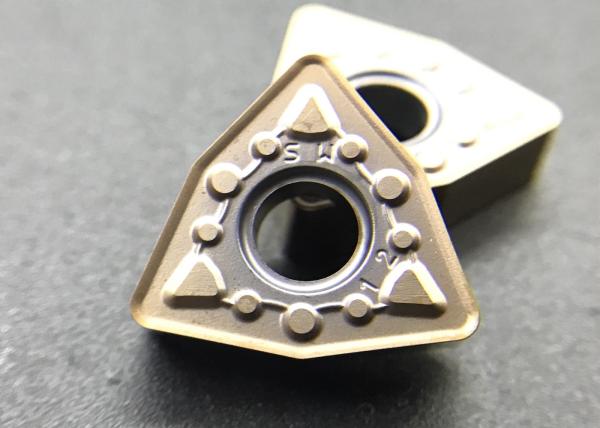

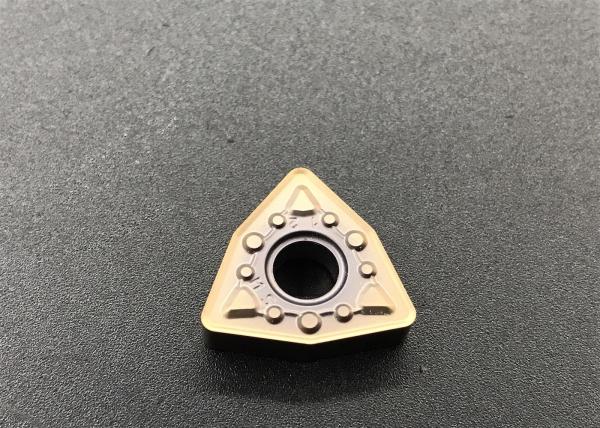

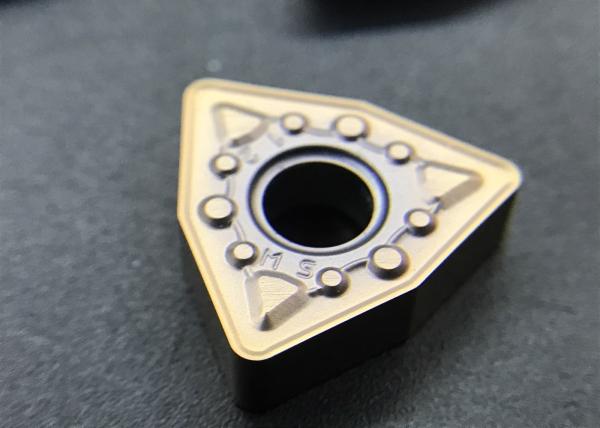

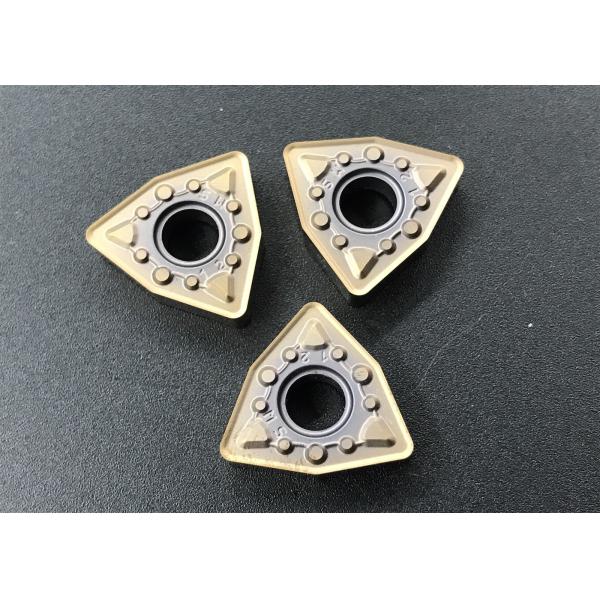

WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing
Specifications
Brand Name :
MMM
Model Number :
WNMG080412-MS1
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
1,000,000 PCS/Month
Delivery Time :
5-15 Days
Packaging Details :
Internal Plastic Box Packaging
Material :
Cemented Carbide
Coating :
PVD Nano-Coating
Processing Material :
ISO M , Stainless Steel
Application :
Semi-Finishing
Standard :
ISO
Type :
WNMG080408-MS1
Chipbreaker :
M-Level Accuracy, Sharp, Polishing，Cutting Brisk
Usage :
External Turning Tool
Product name :
Carbide Turning Inserts
Package :
10pcs/plastic Box
Keywords :
Coated Carbide Inserts
Description

WNMG080412-MS1 CNC Carbide Inserts for Stainless Steel SemiFinishing

Application:

Semi-Finishing Turning of All Types of Stainless Steel.

Feature Advantage:

  • For further optimization of the MS geometry, iron filing control is more ideal
  • The price has obvious advantages over Japan, South Korea and mainstream European and American brands.
  • Consider different stainless steel properties, through excellent groove design, with ideal coating and professional surface treatment technology.
  • Grades:
    • High coating hardness and excellent high temperature resistance, with high processing efficiency and reliability under high temperature cutting conditions.
    • Special coating treatment technology, the coating and matrix are more firmly bonded.
    • Coating stress relief treatment, effectively improve tool life, improve stability, and make tool life predictable.

Grade

Coating

Performance

Equivalent

Grade

MP1215

 PVD TiAlN Nano-Coating
  • ​Better versatility
  • Good high temperature resistance
  • Suitable for occasions where the rigidity is relatively poor

GC1030

GC2030

VP15TF

TT9030

MP1315

 PVD TiAlN Nano-Coating
  • ​Higher hardness
  • Better PVD coating
  • Suitable for higher cutting speeds

GC1025

VP15TF

TT9030

MC4225

 Excellent CVD Coating
  • ​Higher hardness and wear resistance
  • Suitable for higher cutting speeds

GC2025

GC2135
US735
TT5100
  • Suitable for semi-finishing of stainless steel with a depth of cut of 1-3 mm.
  • Chipbreaker designed for stainless steel's highly viscous, highly plastic, difficult-to-machine materials.
  • Fast cutting and good control of iron filings for excellent surface quality.
  • Precision polishing edge improves the toughness of the cutting edge, reduces the cutting force, reduces the sticking phenomenon, and significantly improves the stability of the insert.
  • Strengthened the impact resistance of the cutting edge on the basis of sharp edge, suitable for semi-finishing and intermittent processing of various stainless steels.
  • Types:
    • ISO standard turning inserts are available in a variety of conventional types
    • Different tool nose arcs (0.2, 0.4, 0.8) for each type

Negative Insert

Serial

Type

MP1215

MP1315
C CNMG1204 * -MM ★ ★
C CNMG1606 * -MM ★ ★
C CNMG1906 * -MM ★ ★
D DNMG1104 * -MM ★ ★
D DNMG1504 * -MM ★ ★
D DNMG1506 * -MM ★ ★
S SNMG1204 * -MM ★ ★
S SNMG1506 * -MM ★ ★
S SNMG1906 * -MM ★ ★
T TNMG1604 * -MM ★ ★
V VNMG1604 * -MM ★ ★
W WNMG0604 * -MM ★ ★
W WNMG0804 * -MM ★ ★

Positive Insert

Serial

Type

MP1215

MP1315
C CCMT0602 * -MM ★ ★
C CCMT09T3 * -MM ★ ★
C CCMT1204 * -MM ★ ★
D DCMT0702 * -MM ★ ★
D DCMT11T3 * -MM ★ ★
S SCMT09T * -MM ★ ★
S SCMT1204 * -MM ★ ★
T TCMT0902 * -MM ★ ★
T TCMT1102 * -MM ★ ★
T TCMT16T3 * -MM ★ ★
V VBMT1103 * -MM ★ ★
V VBMT1604 * -MM ★ ★
V VCMT1103 * -MM ★ ★
V VCMT1604 * -MM ★ ★

Recommended Cutting Parameters:

MP1215 MP1315
Feed (mm/rev)
0.1-0.4 0.1-0.4
ISO Material Hardness (HB) Speed (m/min)
M Ferritic stainless steel 180 290-190 300-190
M Austenitic stainless steel 260 240-160 250-160
M Martensitic stainless steel 330 250-170 260-170

WNMG080412- MS1 Cemented Carbide Inserts For Stainless Steel Semi Finishing

FAQ:

Q: What information should I let you know if i want to get a quotation?

A: The specifications of the products.

The quantity.

If it is possible, please also provide the application of products, we will recommend relevance products with details for reference.

Q: Do you inspect the finished products?

A: Yes. Each step of production and finished products will be carried out inspection by QC department before shipping.

Q: Can you guarantee the prompt delivery?

A: Yes, the production process will be informed to you promptly.

Q: What is the shipping cost?

A: The shipping cost is determained by the destination port, weight, packing size, total CBM of the

products, we will quote you the resonable shipping cost after you decide the order.
