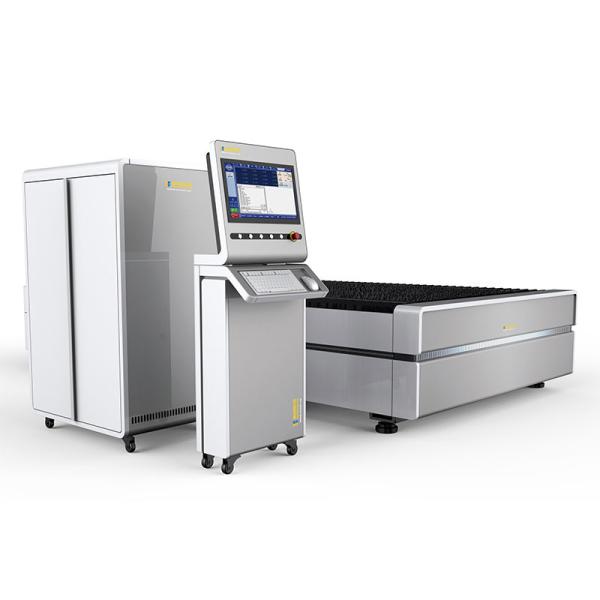

CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
CE SGS FDA Stainless Steel CNC Fiber Laser Cutting Machine 1kw Fiber Laser Cutter
Specifications
Brand Name :
Gaochuang
Model Number :
GC-1530
Certification :
CE,ISO,SGS,FDA,GS
Place of Origin :
China
MOQ :
1 set
Price :
13999 usd ~15999 usd / set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Application :
Laser Cutting
Function :
Cutting Metal Materials
Keyword :
Fiber Laser Cutting Machiens
Description

1000w 1500w 2000w cnc fiber laser cutter machine Stainless steel metal fiber laser cutting machine

affordable fiber laser cutting machine is one of the classic models, which is widely used in many common fields in our life, such as the processing of stainless steel kitchen utensils, lockers, and other cabinets, which are closely related to
people’s daily life. A fiber laser cutting machine is used to cut various metal materials of different materials, such as stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, and rare metals..

The use of integral welding is the basis for the installation of other components

A)The integral welding bed has high rigidity,stability and shock resistance

he main machine bed is made of integral welding,and the internal stress is eliminated by annealing Afterough machining,the vibration and aging are then processed again,thereby greatly improving the rigiditynd stability of the machine tool,and ensuring the accuracy of the machine tool 1000 w fiber laser cutting machine

Model

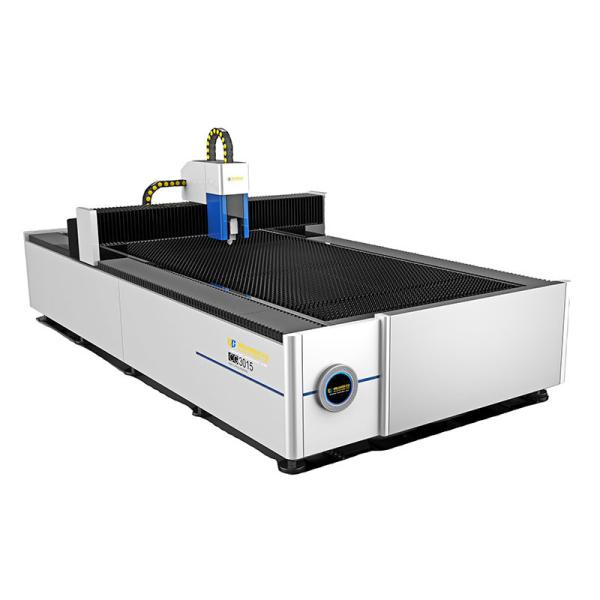

GC 3015 Fiber Laser Cutting Machine
Working Size
1500*3000mm
Laser Power
1/1.5/2/3/4/6/8/12KW
Laser Wavelength
1080nm
Laser Beam quality
<0.373mrad
Working Life of Fiber Source
More than 10,0000 hours
Position Type
Red Dot Pointer
Cutting Thickness
0.5-10mm Within The range
Max. Idle Running Speed
80-110M/min
Max acceleration
1G
Reorientation Accuracy
Within ±0.01mm
Lubrication System
Electrical Motored
Cooling mode
Water cooling and protection system
Machine power
9.3KW / 13KW /18.2KW /22.9KW
Auxiliary Gas for Cutting
Oxygen, Nitrogen, Compressed Air
Compatible Software
AutoCAD, CorelDraw, etc.
Handle Control
Wireless Control Handle
Graphic Format
DXF/PLT/AI/LXD/GBX/NC code
Power Supply Voltage
220V 1Ph or 380V 3Ph, 50/60Hz
Warranty
2 Years

Product tags

fiber laser metal cutting machine

,

metal fiber laser cutting machine

,

cnc fiber laser cutting machine
