Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread
Specifications
Brand Name :
CNC Hardware
Model Number :
01008
Certification :
CE, ACS, NSF
Place of Origin :
China
MOQ :
1000
Price :
$0.80 - $100.00 / Pieces
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000000 Piece/Pieces per Week
Delivery Time :
25 work days
Packaging Details :
carton
Body Material: :
Brass
Brass Material: :
59-3
Seat Material: :
PTFE
Handle: :
Steel/AL/Butterfly Handle/Lever Handle
Size: :
1/4"-4"
Threads: :
NPT/BSP, MM/FF/MF available
Description

Brass Ball Valves Full Port Ball Valve Oil Gas Water Valve NPT/BSP Female Thread

Details
Place of Origin: China Body material: Brass
Model Number: 01001 Working pressure: 25Bar
Temperature: Normal Temperature Application: General
Media: Water Power: Manual
Structure: Ball Working Pressure: 30bar/435psi
Product name: Brass Ball Valve Working Temperature: -20℃-100℃

Full Port Brass Ball Valve For Oil Gas Water NPT/BSP Female Thread

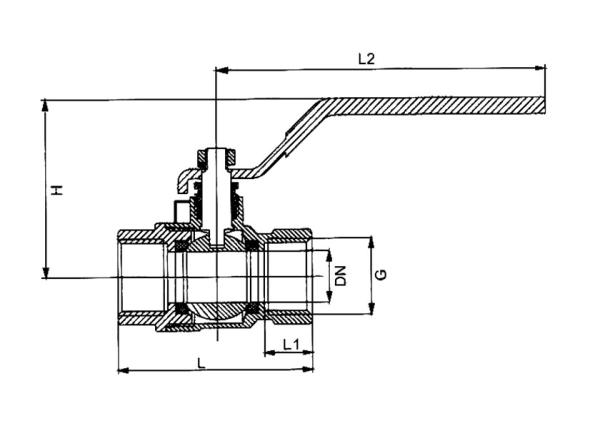

  1. Handle (T-handle, lever-handle)
  2. Press nut
  3. Stem
  4. Seal ring
  5. Valve body
  6. seat
  7. Ball

01011

  • Angle type ball valve with union connection
  • Forged brass construction body
  • Steel/AL/Butterfly handle
  • PTFE seal
  • NPT/BSP threads, MM/FF/MF available
  • Brass/Steel ball
  • Brass / Steel pack nut
  • Size:1/4"-4"
  • Working pressure: PN25
  • Working condition: Water, Oil, Gas
