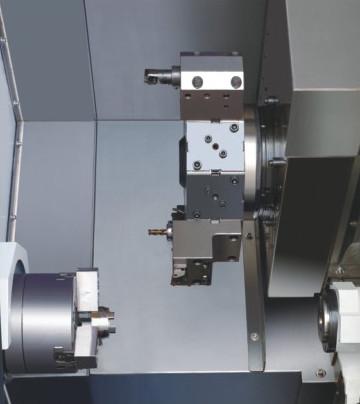

Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500
Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500
Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500
Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500
Specifications
Brand Name :
ARM
Model Number :
CCX-52Y-500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD35000
Payment Terms :
T/T, L/C
Supply Ability :
15 Sets per month
Delivery Time :
40 Days
Packaging Details :
wooden case
Spindle moter power :
7.5/11 servo motor
After-sales service provided :
Video technical support
Weight :
4000KGS
CNC or not :
CNC
Main spindle speed :
4500rpm
Dimension(l*w*h) :
2700mm*1880mm*2050(excluding chip convetor)
Type :
Turning milling compound machine
Numerical control system :
New generation 22tb
Description

Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500

Main technical parameters

Items Unit Parameter
Maximum turning diameter on bed mm Φ600
Maximum machining diameter mm Φ200
Maximum Z-direction travel mm 500
Maximum X-direction travel mm 150(radius)
Maximum Y-direction travel mm 100(±50)
Maximum machining shaft length (chuck + tailstock) mm Within 450 (distance from chuck end to turret end face)
Maximum speed m/min X:30 Y:30 Z:30
Diameter of spindle through hole mm Φ66(Φ79 optional)
Spindle motor power kw 7.5/11 Servo Motor
Nose type for spindle unit - A2-6
Spindle speed rpm 4500
Model of power turret - 80-12T
Square dimension of cylindrical cutter mm 25*25
Boring tool bar dimensions mm Φ32
Specification of power tool holder - BMT55
Servo tailstock sleeve mm 430
Diameter of tailstock sleeve mm Φ70
Taper of inner hole of tail sleeve mt NO.4
Repeat positioning accuracy mm 0.003
Chuck specification mm Φ200(8 inches)
Machine weight kgs ≈4000
Machine tool dimensions(L*W*h) mm About 2700*1880*2050(excluding chip convetor)

Main configurations

Projects Brand Origin
Numerical control system New generation 22tb China Taiwan
Bus servo driver New generation original China Taiwan
10. Z, y, b axis absolute value servo motor New generation original China Taiwan
Main servo motor (including magnetic ring encoder) New generation original China Taiwan
A2-6 spindle unit (4500 revolutions) SKF Bearing Sweden
Track Yintai China Taiwan
Ball screw (grade C3) Yintai China Taiwan
Lead screw bearing NSK/NTN Japan
Main electrical components Schneider Germany
852 hollow rotary cylinders Bedford China mainland
8-inch hollow hydraulic three jaw chuck Bedford China mainland
2kW China Taiwan spline pump hydraulic station Jingdun special China mainland
Cooling water pump 450W Nork China Taiwan investment
Automatic lubrication pump (gear pump) Sheng Xiang China Taiwan investment
Inner guard Central / Hongwang China Taiwan investment
Screw coupling Hongwang China Taiwan
Y-axis lifting 80-12t power turret Lianchen China Taiwan
Power turret output motor and drive New generation original China Taiwan
Heat exchanger Jingwo China mainland
Hand wheel Zhehong China mainland
Foot switch Tiande China Taiwan
Switching power supply Mingwei China Taiwan
Button Congratulatory message China Taiwan
Hydraulic disc brake Dongpei China Taiwan

Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y-500
